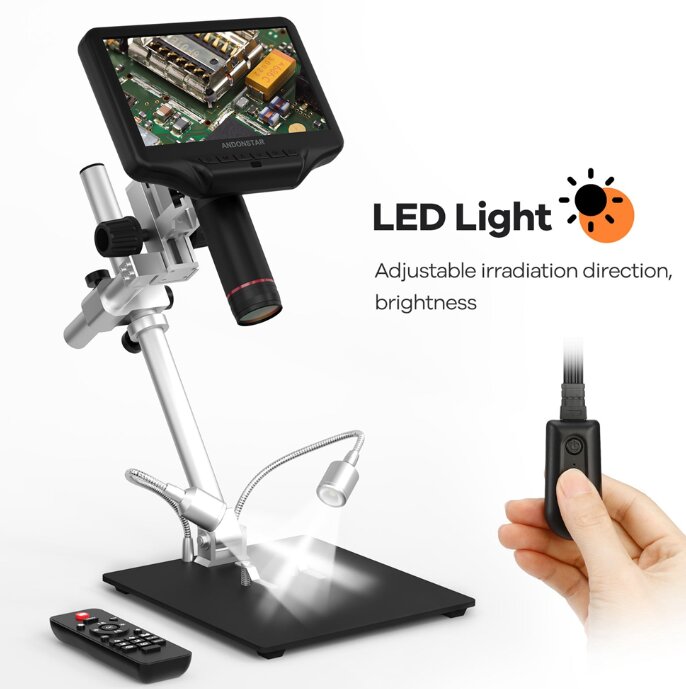

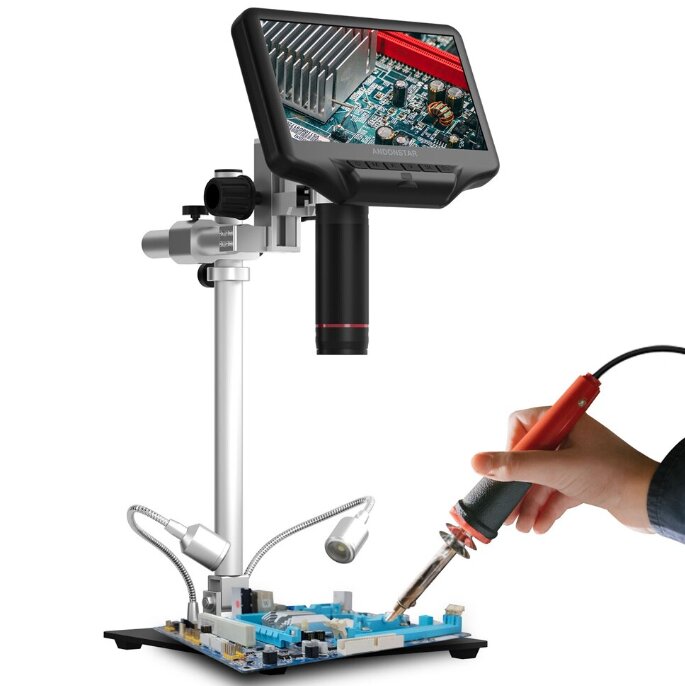

7inch LCD Microscope 4Megapixel Industrial Microscope Digital Electronic Maintenance Magnifying
This microscope has a 7-inch LCD, 4 megapixels with 270X magnification, clear definition imaging quality. And the video recording resolution is up to 1080P and a max of 120f per second, allowing it to capture all your move under the lens. Three operating modes design can be used to cycle between video standby, still image, and playback. It meets the needs of all types of microscopy. It is suitable for printed circuit board identification, antique identification, fine engraving, product appearance inspection, scientific observation, and line inspection in the electronics industry.
Fine Quality: The microscope boots fast and has much less latency with a high-frequency zoom lens with clear definition output and more comprehensive magnification ranges.
7 Inch Display: Industrial maintenance microscope, 7-inch LCD, integrated imaging system, 4 megapixels with clear definition imaging quality.
270X Magnification: The industrial optical lens and 4-megapixel sensors provide 270X magnification. The video recording resolution is up to 1080P, and a max of 120f per second allows it to capture all your move under the lens.
Adjustable Focal Length: Turn the focusing controller to adjust the focal length that adjusts imaging sharpness and with a minimum 50mm focal length for long-distance viewing.
Adjustable Magnification: Two buttons increase and decrease the digital magnification up to an additional 3X over optical magnification.
Mode Switch: Three operating modes design, can be used to cycle between video standby, still image, and playback.
Memory Card Function: There is a memory card slot on the back of the monitor; using a memory card to save images, you can save images and videos to review later or export to computers or other devices.
Reviewing and Managing Images: To review and manage images on display to select review mode to cycle through the pictures and videos, and also can select the video standby mode to review the video.

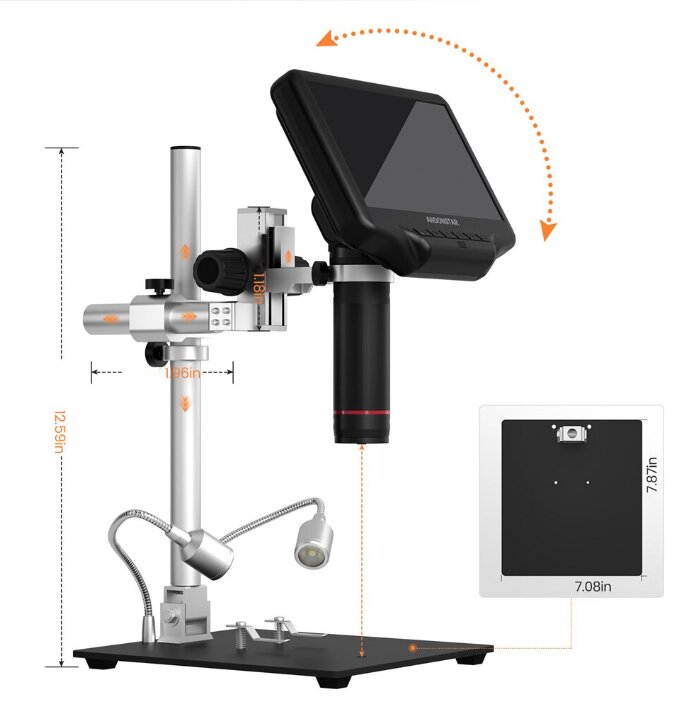

Stable Bracket: With a thickened and anti-slip base that can be removed, the bracket is easy to store and remove.
Multifunctional Design: With delete function(delete current and delete all function, protecting function(lock current/all and unlock current/all), slide show(you can choose 2 seconds, 5 seconds or 8 seconds for each play), date and time setting function, etc.
Remote Controller: Comes with a remote controller, with freeze images and videos function, support illumination adjustable, exposure compensation, Soft/Normal/Strong three levels of sharpness adjustable and three levels of contrasts adjustable function.
Available Occasions: It meets the needs of all types of microscopy and is suitable for printed circuit board identification, antiques identification, fine engraving, product appearance inspection, scientific observation, and line inspection in the electronics industry.
Battery: 2 * AAA battery (not included)
Display: 7inch LCD display
Object distance: minimum 50mm
Video format: MP4
Video output: UHD2880*2160 24FPS; FHD1920*1080 60FPS/30FPS, HD1280*720 120FPS
Magnification ratio: Up to 270X (27inch clear definition multi-media interface monitor output)
Photo format: JPG
Photo resolution: MAX 4032*3024 (12M 4032*3024)
Frame rate: Max 120f/s (under 600lm/m Brightness& HDP120) Storage: memory card (not included), up to 64G
Power source: 5VDC
Package size: 325 * 216 * 100mm / 12.80 * 8.50 * 3.94in
Package weight: 1600g / 3.53lb
1 * Microscope Monitor
1 * Bracket
1 * Beam
1 * Column
1 * Output Cable
1 * Power Adapter
1 * Remote Controller
1 * Wrench
2 * Screw
2 * Spring
2 * Metal Clip
1 * Power Cable
1 * Users Manual
