AUTEL MaxiSys MS906 Automotive Diagnostic Scanner Scan Tool Code Reader
AUTEL MaxiSys MS906 Automotive Diagnostic Scanner Tool Code Reader Specifications:
Autel Maxisys MS906 Automotive Diagnostic Scanner Scanner with OE Level Diagnosis and ECU Coding
Language: English ONLY
Autel is a leading company experienced in producing professional diagnostic tools, equipment and accessories in the automotive aftermarket. Focused on the orientation of “value innovation and assiduous pursuit”, Autel has always adhered to deliver easier diagnostic solutions and long-time value to customers worldwide.

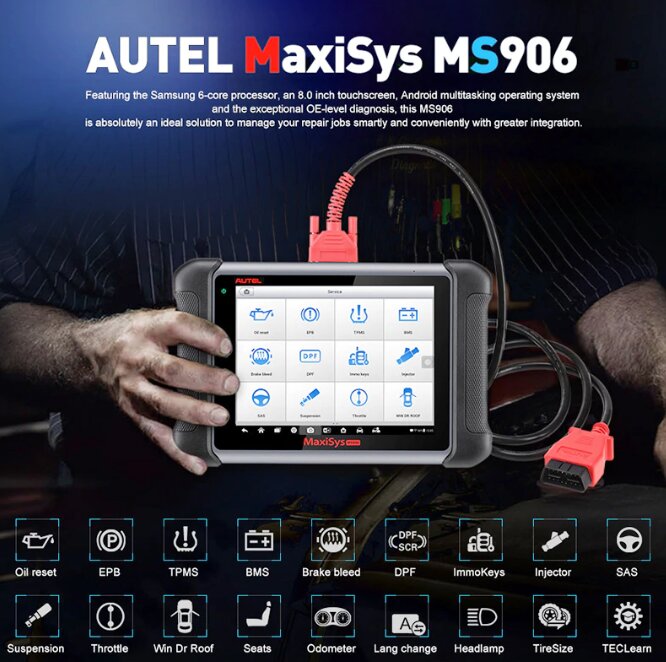

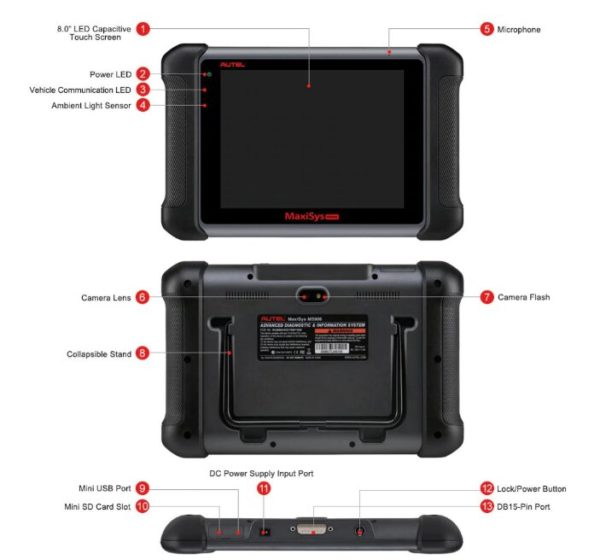

MaxiSys MS906 is an advanced diagnostic tool developed for mechanics looking for a scanner with ultra-convenient and modern design while delivering ultimate performance. Featuring the Samsung 6-core processor, an 8.0 inch LED capacitive touch screen, Android multitasking operating system and the exceptional OE-level diagnostics, this diagnostic scanner MS906 is absolutely an ideal solution to manage your repair jobs smartly and conveniently with greater integration.
■ Bullet Points
■ Complete Diagnostic Functions for All Systems
■ In All Vehicle Systems on the ECUs
The diagnostic tool can access to ALL vehicle systems and subsystems, such as Body, Chassis, Powertrain, Network and etc., to perform a comprehensive scanning on ECUs to locate fault systems and retrieve DTCs.
■ Active Test
The Active Test function is used to access vehicle-specific subsystem and component tests. Available test varies by manufacturer, year, and model, and only the available tests display in the menu. During an active test, the tester outputs commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.
■ Special Functions
■ OBDI Adaptor List

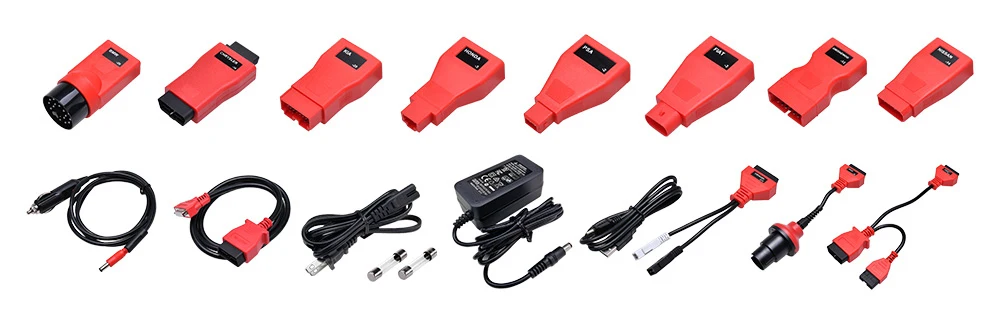

Adapters for GM/Daewoo-12, BMW-20, Benz-38, Kia-20, Mitsubishi/Hyundai-12+16, Nissan-14, Honda-3, VW/AUDI-2+2, Chrysler-16 (America Only), Fiat-3 (Europe Only), PSA-2 (Europe Only), Benz-14 (Europe Only)
■ Extension Usage
■ Wide Vehicle Coverage
