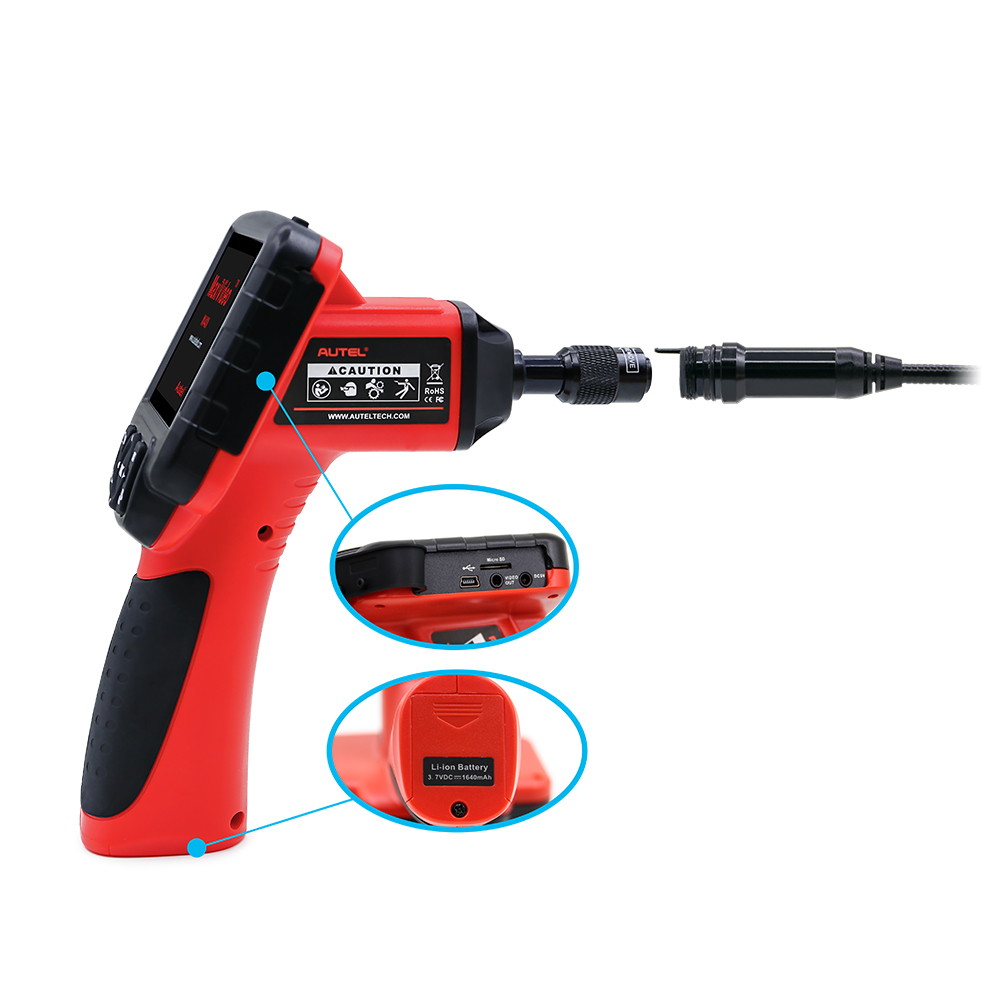

AUTEL MV400 8.5mm VideoScope Maxivideo Inspection Camera
Autel Maxivideo MV400 Digital Videoscope with 8.5mm diameter imager head inspection camera Multipurpose Videoscope
This premier Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult- to- reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory or on the removable Micro SD Card (Optional). The ergonomic tool not only features a 3.5 full color LCD screen, auto focus and viewing capacity as close as 1 with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.
Autel MaxiVideo MV400 Features
Records and plays back still images and video clips
3.5” high resolution full color LCD display (320×240)
Easy-to-use, multi-language interface
Wide camera angle for images with 640×480 resolution
With optional removable Micro SD cards, saves images and videos to take with anywhere
On-screen horizontal/vertical reverse
5x digital zoom for increased viewing
Mini USB connector for uploading images and videos to a computer
Narrow probe diameter available in either 8.5mm(0.33) or 5.5mm(0.22) and fits most spark plug holes
White LED to illuminate the inspection area, with illumination control
Views objects as close as 1
Oil and scratch resistant tempered glass lens
1M (39.4) semi-rigid, but flexible watertight shaft
Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
Ergonomic and durable tool housing
One-year limited warranty
Autel MaxiVideo MV400 Specifications
Recommended use | Indoor |
Optimalviewing Distance | 3/8” to 12” (0.95cm to 30cm) with 5.5mm diameter imager head |
Image capture | JPG images (640×480) AVI videos (320 x 240) |
Screen type display | 3.5” TFT LCD |
Display resolution | 320 x 240 |
Power supply | Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh) |
Tested battery life | 3-4 hours of continuous use |
Dimensions | 199 x 100 x 178mm (7.83 x 3.94 x 7.0) |
Recording medium | Micro SD card (Micro SD card is optional and not included) |
Imager head | 5.5mm (0.22) is optional. |
Waterproof | Imager head and cable to 3m (10) |
Additonal ports | USB, video out (TV-out) port |
Operating temp. | Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C) |
Storage temp. | -4°F to 158°F (-20°C to 70°C) |
Video output | RCA |
TV out | NTSC, PAL |
Autel MaxiVideo MV400 Accessories:
1 x User’s manual
1 x Protective carrying case
1 x Imager head and cable (8.5mm is standard)
1 x Magnet ,hook and mirror (optional)
1 x Charger
1 x USB cable
1 x Video out-cable ( TV-out cable)
