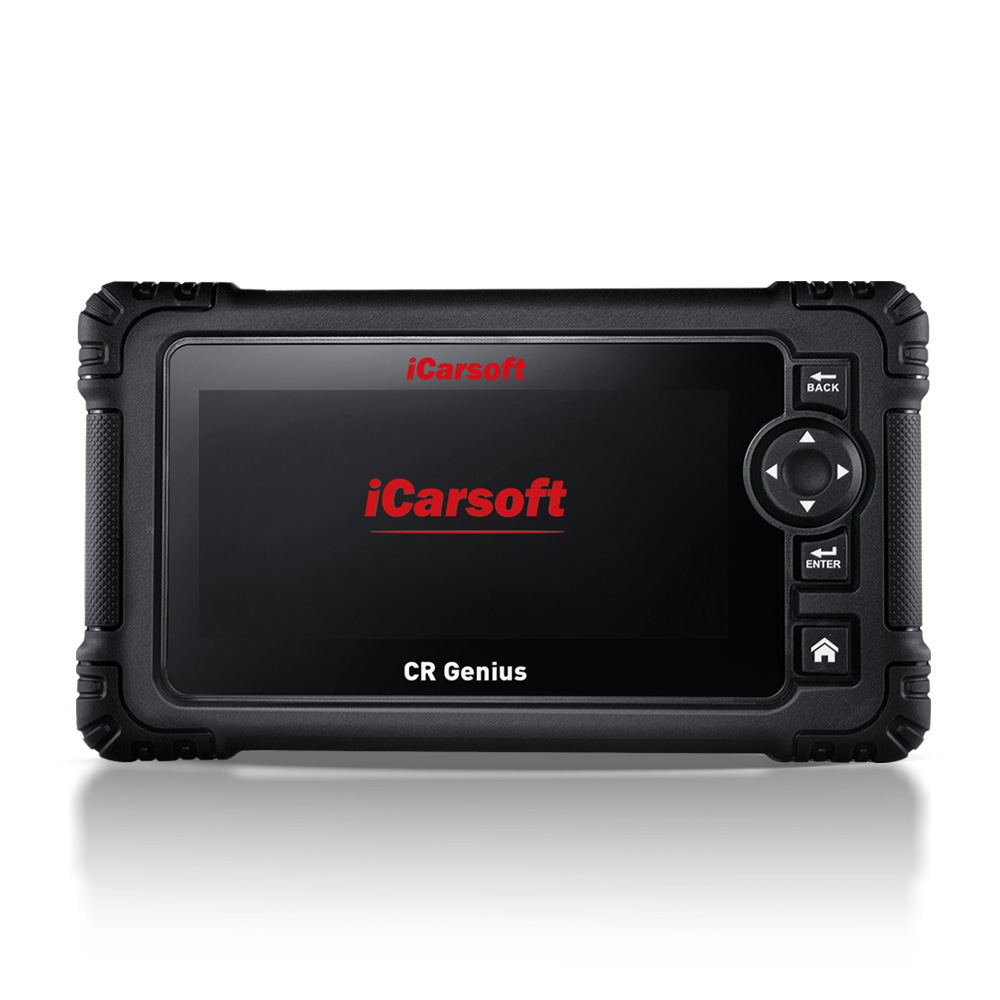

iCarsoft CR GENIUS OBD2 Diagnostic Scanner Car Code Reader Tool


369.00 including 23% VAT Rate

Subtotal:

Add-ons total:

Total:

iCarsoft CR GENIUS OBD2 Diagnostic Scanner Car Code Reader Tool

OPERATING SYSTEM: ANDROID 8.1.0
PROCESSOR: Quad Core 1.3GHz
MEMORY:16GB
DISPLAY:5-inch LCD capacitive touchscreen with 1280×720 resolution
CONNECTIVITY: MINI USB 2.0/ WI-FI/ BLUETOOTH/OBD II
BODY COLOR: BLACK
POWER AND BATTERY: OBD DLC VOLTAGE RANGE:9-18V
3.7 V/5000MAH LITHIUM-POLYMER BATTERY
CHARGES VIA 5 VDC POWER SUPPLY

TESTED BATTERY LIFE: AROUND 5 HOURS OF CONTINUOUS USE
BATTERY CHARGER:5V/2A
POWER CONSUMPTION:500MA(LCD ON WITH DEFAULT BRIGHTNESS,WI-FI ON)@3.7 V
OPERATING TEMP.:0℃~40℃ (32~104 °F)
STORAGE TEMP.:-20℃~70℃ (-4~158°F)
OPERATING HUMIDITY: 5%-95% NON-CONDENSING
DIMENSIONS(W*H*D):210*120*31 mm(L xWx H)
NET WEIGHT:≈510g
SUPPORT PROTOCOLS:
ISO9141-2, ISO14230-2, ISO15765, KL-LINE
Flashing Code, SAE-J1850 VPW,SAE-J1850PWM,
ISO11898(HIGHSPEED,MIDDLE SPEED, LOW-SPEED AND SINGL .EWIRE CAN)
SAE J2610, GM UART UART ECHO BYTE PROTOCOL
HONDA DIAG-H PROTOCOL ,TP2.0,TP1.6.

Diagnosis:
Full OBDII/EOBD function
Read ECU (Electronic Control Unit) information from all systems
Read and Clear DTC (Diagnostic Trouble Codes) from all systems
Read Live Data
Read and Clear Freeze Frame
Battery Voltage Test
Auto VIN vehicle detection



Service Functions:
Actuation/Bi-directional test
OIL | Oil Reset Service
EPB | Electronic Parking Brake Service
BMS | Battery Management System Service
ETC | Electronic Throttle Control Service
SAS | Steering Angle Sensor Calibration Service
DPF | Diesel Particulate Filter Service
BLD | ABS Bleeding Service
INJ | Injector Coding Service
TPMS | Tyre Pressure Monitor System Service

Powerful diagnostics for wide vehicle coverage.
Multiple special service functions.
Personalized design, more convenient to use.

PRODUCT INTRODUCTION
ICARSOFT CR GENIUS IS A PROFESSIONAL AND POWERFUL VEHICLE FAULT DIAGNOSIS TOOL FOR MULTI-BRAND VEHICLES (MORE THAN 40 KINDS OF VEHICLE MAKES) DEVELOPED BY ICARSOFT TECHNOLOGY INC. WITH A 5.0″ LCD CAPACITIVE TOUCHSCREEN AND THAT DISPLAYS AT 1280 X 720 RESOLUSION. TOGETHER WITH THE ABILITY TO QUICKLY READ AND CLEAR DTCS FOR ALL AVAILABLE MODULES OF THE MAJORITY OF THE MAKES AND MODELS ON THE MARKET, CR GENIUS PROVIDES YOU WITH SUPERIOR SPECIAL FUNCTIONS. IT FEATURES FULL ECU DIAGNOSIS OF MOST VEHICLE BRANDS AND TEST MODES MAINLY INCLUDE: CANBUS, ISO9141, KWP2000, AND J1850 ETC. IT ENABLES TECHNICIANS TO ACCURATELY DIAGNOSE COMPLEX PROBLEMS.FULL ECU DIAGNOSIS OF MOST VEHICLE BRANDS AND TEST MODES MAINLY INCLUDE: CANBUS, ISO9141, KWP2000, AND J1850 ETC. IT ENABLES TECHNICIANS TO ACCURATELY DIAGNOSE COMPLEX PROBLEMS.

CR GENIUS VEHICLE COVERAGE
European:

for Sprinter, for BMW, for Mini, for VW, for Seat, for Skoda, for Volvo, for Porsche, for SAAB, for EU Ford, for Dacia, for Renault, for Fiat, for Mercedes-Benz, for Citroen, for Jaguar, for Peugeot, for Audi, for Opel, for Land Rover, for Smart, for Vauxhall, for Alfa-Romeo, for Lancia.

Asia:

for Nissan, for Infiniti, for Toyota, for Lexus, for Scion, for Honda, for Isuzu, for Hyundai, for Kia, for Daewoo , for Mazda, for Acura, for Subaru, for Mitsubishi, for Suzuki,

America:

for USFord, for GM, for Chrysler

Australia:

for Holden, for AUS Ford

READ &CLEAR CODES FOR ALL AVAILABLE SYSTEMS.
DISPLAY LIVE DATA IN TEXT, GRAPH & ANALOG FOR EASY DATA REVIEW.

ACTUATION TEST / BI-DIRECTORY TEST IS USED TO ACCESS VEHICLE-SPECIFIC SUBSYSTEM AND COMPONENT TESTS.
THE CR GENIUS CAN RECORD THE VEHICLE TEXTS HISTORY AND IDENTIFY THE VEHICLE INFORMATION AUTOMATICALLY. ALSO KEEP THE LIVE DATA INFORMATION.

PRODUCT FEATURES
1. Comprehensive OBD relearn coverage.
2. Onscreen relearn procedure.
3. Read &Clear codes for all available systems.
4. Display live data in text, graph & analog for easy data review.
5. Auto VIN technology can automatically identify model and year information in no time.
6. Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
7. Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
8. Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
9. Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
10. Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
11. Battery Management System (BMS): Registers new battery to the BMS while battery replacement.
12. Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle valve.
13. ABS Bleeding: Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
14. Injector coding: Relearn the injector control parameter while the injector renewed or replaced.
15. Support TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
16. DTC library to look up when user is operating this tool.
17. Support Freeze Frame of Fault Code functions.
18. Automatic software upgrade.
19. Easy to feedback test questions online.
20. Provides convenient instruction with customer in interface.
21. Multi-language: English, Deutsch, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish and Finnish.
*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
*This scan tool covers 20 years models, so some functions may not be available on all years /models.
*We reserve the rights to make any change to this description without notice.

PRODUCT DETAILS DISPLAY
Dimensions(W*H*D)
210*120*31mm (L x W x H)
Operating
System Android 8.1.0
Processor
Quad Core 1.3GHz

OBDII FUNCTION
1. Read Codes
2. Erase Codes
3. I/M Readiness — I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. DataStream
5. Freeze Frame — When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test — This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitoring — This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test — The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information — The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

PRODUCT SPECIFICATIONS
RECOMMENDED USE
INDOOR
OPERATING SYSTEM
ANDROID 8.1.0
PROCESSOR
Quad Core 1.3GHz
MEMORY
16GB
DISPLAY
5-inch LCD capacitive touchscreen with 1280×720 resolution
CONNECTIVITY
MINI USB 2.0/ WI-FI/ BLUETOOTH/OBD II
BODY COLOR
BLACK
POWER AND BATTERY

OBD DLC VOLTAGE RANGE:9-18V

3.7 V/5000MAH UITHIUM-POLYMER BATTERY

CHARGES VIA 5V DC POWER SUPPLY

TESTED BATTERY LIFE
AROUND 5 HOURS OF CONTINUOUS USE
BATTERY CHARGER
5V/2A
POWER CONSUMPTION
5000mAh (LCD ON WITH DEFAULT BRIGHTNESS,WI-FI ON)@3.7 V
OPERATING TEMP
0~40℃ (32~104 °F)
STORAGE TEMP
-20~70℃ (-4~158°F)
OPERATING HUMIDITY
5%-95% NON-CONDENSING
DIMENSIONS(W*H*D)
210*120*31 mm(L xWx H)
NET WEIGHT
≈510g
SUPPORT PROTOCOLS

ISO9141-2, ISO14230-2, ISO15765, KL-LINE

Flashing Code, SAE-J1850 VPW,SAE-J1850PWM,

ISO1 1898(HIGHSPEED,MIDDL ESPEED, LOWSPEED AND SINGLE WIRE CAN)

SAE J2610, GM UART UART ECHO BYTE PROTOCOL

HONDA DIAG-H PROTOCOL ,TP2.0,TP1.6

COMMODITY PACKAGING

EFFECT DISPLAY
