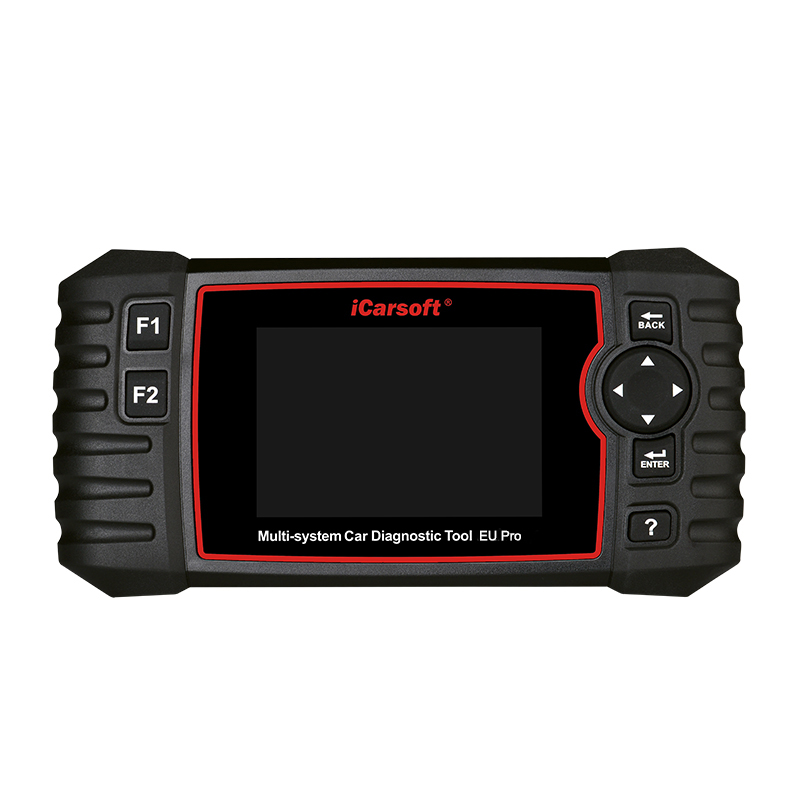

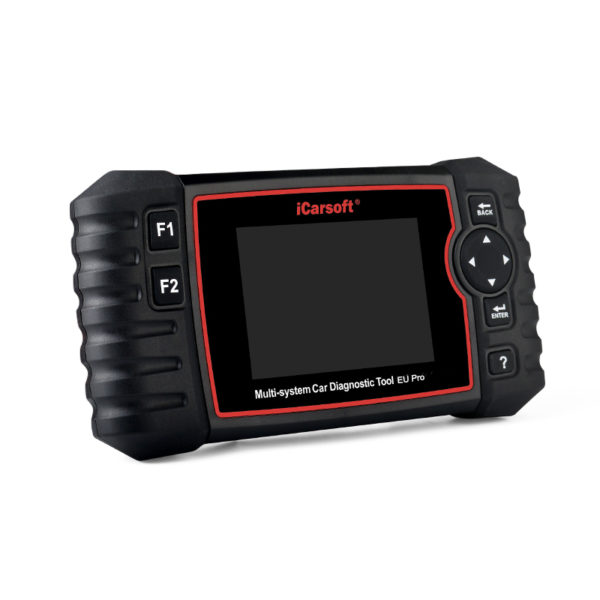

iCARSOFT EU Pro Car Diagnostic Tool Scanner
Car Diagnostic Tool Scanner
FOR EUROPEAN VEHICLES
EU Pro Vehicle Coverage: iCarsoft EU Pro is a Professional and powerful vehicle fault diagnosis tool for European vehicles developed by iCarsoft Technology Inc. With a 4.0″ TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.
① BACK BUTTON–Returns to previous menu.
② UP BUTTON–Moves cursor up for selection.
③ LEFT BUTTON–Moves cursor up for selection.
④ RIGHT BUTTON–Moves cursor down for selection.
⑤ DOWN BUTTON–Moves cursor down for selection.
⑥ ENTER BUTTON–Confirms a selection(or action)from a menu list.
⑦ HELP BUTTON–Shows help information for test results or user operation
⑧ F1 FUNCTION BUTTON–In case of special use.
⑨ F2 FUNCTION BUTTON–In case of special use.
⑩ OBDII CONNECTOR–Connects the scan tool to the vehicle’s Data Link Connector via OBDII Cable.
⑪ STORAGE CARD SLOT–Holds the system of the scan tool.
⑫ Data Cable CONNECTOR–Connects the scan tool
for power supply and update the software if needed.
1.iCarsoft EU Pro can do it all-reads and clears trouble codes on most of the system such as engine, transmission, ABS and airbag etc.2.Support OBDII/EOBD Ten Modes of Operation
3.Read Live Data
4.Full ECU Diagnosis
5.Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC
6.Easy To Use With Silicone Keys
7.Oil Light/Service Reset: Support service lamp reset.
8.Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.
9.Battery Management System (BMS), registers new battery to the BMS while battery replacement.
10.Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regengeration process while DPF blockage and turn off the DPF indicator.
11.Electronic Throttle Control system (ETC) relearns the throttle va value while clear or
replaces the throttle valve.
12.SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
13.ABS Bleeding, release the air to restore ABS Brake sensitivity, or relearn while ABS replaced.
14.Injector coding, relearn the injector control parameter while the injector renewed or replaced
15.The Print Data function allows you printing out diagnostic data recorded by the scan
16.Battery test allows you getting the voltage of battery with OBD port by the scan tool
when the engine starts.
17.DTC Library to lookup when user is operating this tool.
18.Upgrade Via PC
19.Multi-language: English, German, Dutch, Spanish, French.
▪Diagnose Single Brand of most Models (OBDII-16DLC)▪Full System Diagnosis ▪Support Oil Service Reset
▪Electronic Parking Brake (EPB) system maintenance
▪Battery Management System (BMS)
▪Diesel Particulate Filter (DPF) Regeneration Control System
▪Electronic Throttle Control System (ETC)
▪Steering Angle Sensor (SAS) Calibration
▪ABS Bleeding(some vehicles do not enjoy this function)
▪Injector Coding(some vehicles do not enjoy this function)
▪Read &Clear DTC
▪Read Live Data
▪Support Battery Test
▪Support Data Review and Print
▪Full Speed Upgrade via PC
▪4.0″ TFT LCD, 480*320 Pixels
1. Read Codes
2. Erase Codes
3. I/M Readiness — I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data stream.
5. Freeze Frame — When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test — This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitoring — This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test — The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information — The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing
and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More
Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)
EU Pro Main Unit
TF card (In the main unit)
