iCARSOFT i902 for Opel/Vauxhall Multi-system Scanner Car Diagnostic Tools


Car Diagnostic Scanner Tool

189.00 including 23% VAT Rate

Subtotal:

Add-ons total:

Total:

iCARSOFT i902 for Opel/Vauxhall Multi-system Scanner Car Diagnostic Tools

Scanner Car Diagnostic Tools

A) Display: 2.8″ Color screen , 320 x 240 pixels display with contrast adjustment
B) Operation Temperature: 0 ℃ — 50 ℃
C) Storage Temperature: -20 ℃ — 70 ℃
D) Power: 9V — 18V
E)Operating current:100mA@12V(Typical)
F)Power consumption:1.2W(Typical)
G)Dimension:121mm*86mm*26mm(LxWxH)
H)Weight:300g

iCarsoft Multi-system Scanner i902for Opel / Vauxhall +OBDII (Diagnose Single
Brand of all Models,OBDII-16 DLC)

i902 is a professional vehicle fault diagnostic tool developed by iCarsoft Technology Inc.. Specially for full system of one vehicle brand. This product supplies colorful TFT screen and unique diagnostic software.

iCarsoft Multi-system Scanner i902 for Opel/Vauxhall:
i902 Multi-system Scanner supports full system diagnosis. It’s a powerful DIY tool, test modes include: CANBUS, ISO9141, KWP2000, J1850 etc.. It enables technicians to accurately diagnose complex problems.

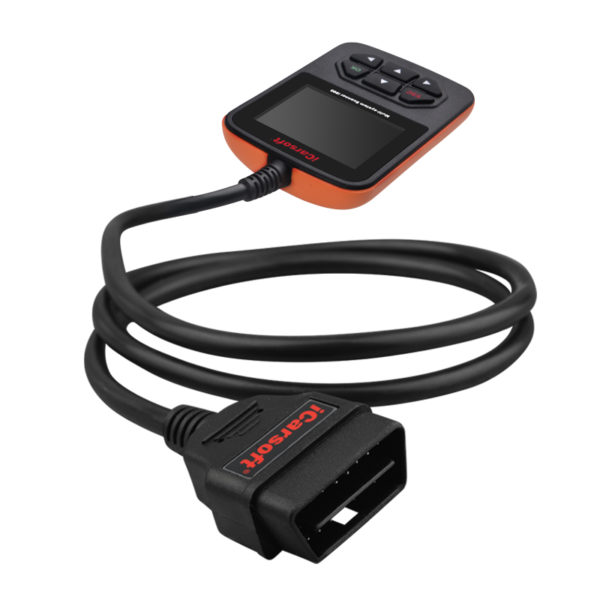

① Cable with OBD II Connector — Connects the Multi-system

Scanner to the vehicle’s Data Link Connector(DLC).

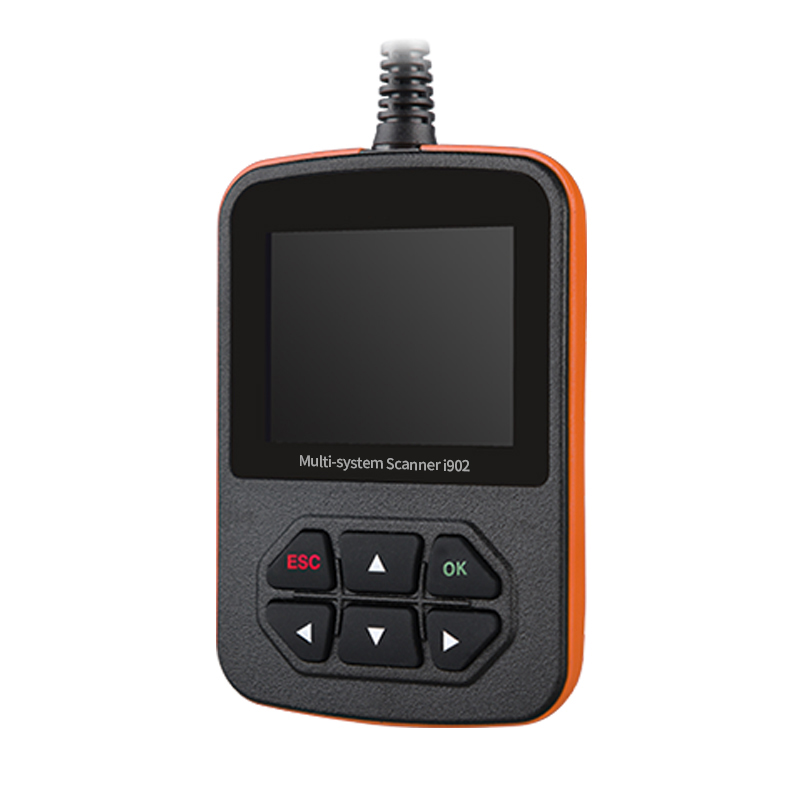

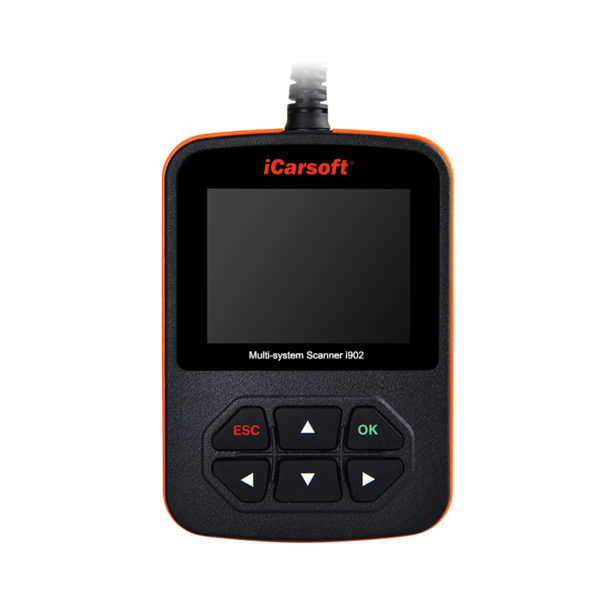

② LCD Display — Indicates test results.

③ ESC Button — Returns to previous menu.

④ LEFT Button — Move cursor right or left for selection;Or turn

page up and down when more than one page is displayed.

⑤ DOWN Button — Move cursor up and down for selection.

⑥ RIGHT Button — Move cursor right or left for selection;Or turn

page up and down when more than one page is displayed.

⑦ OK Button — Confirms a selection(or action)from a menu list.

⑧ UP Button — Move cursor up and down for selection.

EIGHT
SUPER ADVANTAGES
1. The fastest full color, 2.8″ TFT 320*240 pixels
2. High Speed Upgrade
3. Support Multi-language
4. Read & Clear DTCs
5. Read Date Stream
6. Silicone keys with great customer experience
7. Full System Diagnosis
8. Diagnose Single Brand of all Models (OBDII-16 DLC)

OBDII FUNCTION
1. Read Codes
2. Erase Codes
3. I/M Readiness — I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame — When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test — This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitoring — This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test — The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information — The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM data stream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More

VEHICLE COVERAGE:

• Astra‐J
• Insignia (2009-2013)
• Meriva‐B
• Corsa‐D
• Corsa‐D
• Vauxhall Monaro
• ara,Captiva(Short Body )
• Captiva(Long Body)
• Agila‐B
• Agila
• Tigra
• Tirgra‐B
• Corsa‐B
• Corsa‐C
• Astra‐F
• Astra‐G
• Astra‐H
• Vectra‐B
• Vectra‐C/Signum
• Zafira
• Zafira‐B
• Omega‐B
• Arena
• Calibra
• Campo
• Combo
• Frontera
• Frontera‐B
• Meriva
• Monterey
• Movano
• Sintra
• Speedster/VX220
• Vivaro
• Corsa‐B(GMSA)
• Corsa‐C (GMSA)
• Astra‐G(GMSA)

FEATURES FOR OPEL

• Read DTCs
• Clear DTCs
• Read live data stream
• Single Brand of all Models ( OBDII-16 DLC )
• Full system diagnosis
• Upgrade via Computer
• Multi-language
VEHICLE COVERAGE(not all cars cover these systems,you can check function list for details.)
• Engine Control Module
• Transmission Control Module
• Electronic Brake Control Module
• Fuel Pump Control Module
• Parking Brake Control Module
• Electric Power Steering Control Module
• Front Seat Heating Control Module
• Body Control Module
• Inflatable Restraint Sensing&Diag. Module
• Instrument Cluster
• Keyless Entry Control Module
• Radio
• Remote Heater and Air Conditioning Control Module
• Steering Column Lock Control Module
• Trailer Interface Control Module
• Fuel Injector Control Module
• Steering Wheel Angle Sensor Module
• BCM
• Headlamp Control Module
• Parking Assist Control Module
• Z10XEP
• Z12XEP
• Z14XEP
• Z13DTH
• Z13DTJ
• Z16LEL
• Z16LER
• A10XEP
• A12XER
• A12XEL
• Z13DTE
• A14XER
• A14XEL
• A16LEL
• A16LER• Engine (Default)
• AF‐13‐4• MTA2• MTA• ABS
• EPS
• EHS
• AFL
• Immobilizer
• Central Door Lock
• Anti Theft Waring System
• Heating,Ventilating and Air Cond
• Wipers/Washer
• Interior Lighting
• Exterior Lighting/ Turn Indicator System

• IPC
• PAS
• SDM
• TIM
• V8 GEN IV
• AT
• EBCM
• ESC
• AHL
• HVAC
• MSM
• Park Assist
• IPC (Instrument Panel Cluster)

• RFA (Multipurpose Receiver Module)

• 2.0 L (Diesel)

• Z24XE
• Z32SE

• SDM (Airbag)
• ECC
• SLM
• XBCM

• Z 32 SE
• TCCM

• K10B
• K12B
• D13A / Z 13 DTJ
• ABS/ESP
• Z10XE

• Z12XE

• Z13DT

• Radio CAR 2003

• Radio CAR 2003

• Radio CDR 2005
• Trip Info Display TID
• X14XE
• X16XE
• AF 13/14/20
• Airbag
• Airbag SAB6
• Airbag‐S
• Anti Theft Warning
• ABS‐5.3
• Radio 300
• Radio 400
• Radio 500
• Radio 700
• Z18XE

• Easytronic(MTA)
• Electrohydraulic Hardtop
• ABS8/ESP8
• Electronic Power Steering
• C14NZ
• C14SE
• X10XE
• X12XE
• X14NE
• X14SZ

• AF 13II/20/22/30
• Multi Info Display MID
• Radio 600
• Radio NCDR 1100/1500
• Radio CCR 600
• Y13DT
• Y17DT
• Y17DTL

• Z16YNG
• Z14XE
• Z16SE
• Z17DTH
• AF 13‐II/17/20/22

• AF 13‐II/17/20/22 CAN
• Esaytronic(MTA)

• Add On Heater

• Electronic Climate Control

• HeadLamp Levelling Device
• ABS‐5.3/5.4 (+TC)

• 16LZ2
• 16NZR• C18SEL
• C16SE• X16SZR0• X18XE
• X20XEV
• C16SEL
• X16XEL
• X17DTL
• X18XE1
• X20DTL
• X20XER
• Y20DTH
• Y20DTL
• Y22DTR
• Z16XEP
• Z17DTL
• Z18XEL
• Z20LET
• Z22SE
• Soft top Controler• Radio CAR 300
• A18XER
• Z 19 DT

• Z19DTH
• Y13DTH
• Z14XEL
• Z17DTJ
• Z17DTR
• Z16LET

• Z16XE1
• Z18XER
• Z22YH
• Z16XER
• Z20LEL
• Z20LER
• Z20LEH

• A16LET
• A16XER
• A17DTJ

• A17DTR

• AF40-6
• AF17‐4
• AF22‐4
• MTA(Easytronic)
• MTA(Easytronic Magneti Marelli)
• CIM (Steering Column Module)
• ATWS
• IPC ECU
• AHL/AFL(Headlamp Levelling)
• REC
• PEPS
• ECC/SAC
• CDC
• UEC

• EHPS (Electrohydraulic Power Steering)
• ABS/TC/ESP(Vehicle Dynamic System)
• TPMS(Tire Pressure Monitoring System)
• TPMS ECU(Tire Pressure Monitoring)
• ABS/TC/ESP ECU
• C20SEL
• C22SEL

• X20DTH

• X25XE
• Y16XE
• Y26SE
• Z16XE
• Z18XE1
• ABS 415
• ABS‐430
• ABS‐5‐TC
• Engine Cooling
• Z28NEH
• Z28NEL
• Z28NET

• Y 30 DT
• Z 30 DT
• Z 20 NET
• Z 19 DT
• AF 23‐5/33‐5/40‐6

• CVTronic
• AF 23‐5/33‐5
• Heating,Ventilation and Air Cond.
• SRM(Sun Roof Module)
• Electrical Horn
• SAC(Automatic Climate Control)
• DDM
• PDM
• CDL
• ESM
• Electronic Cruise Control
• Engine Cooling Module
• Z19DT
• Z19DTL
• 20SE
• Y22DTH
• Y22XE
• Y25DT
• Y32SE
• Z22XE
• AR 25/35
• 5L40‐E
• Head Light Range Adjustment
• ABS‐2SE (TC)
• Servotronic
• Radio CCR 2006
• Z17DT
• ENG_4JX1
• ENG_6VE1
• Pneumatic Suspension
• X22DTH
• ABS 430
• F9Q 760_762 (1.9L)
• 13NE
• 14NE
• 16NE
• 16SE
• C18XE
• Power Window Lifter Front
• Power Window Lifter Rear
• Radio CCRT 2008
• 20SEL
• X18XEL

SPECIFICATIONS

A) Display: 2.8″ Color screen , 320 x 240 pixels display with contrast adjustment
B) Operation Temperature: 0 ℃ — 50 ℃
C) Storage Temperature: -20 ℃ — 70 ℃
D) Power: 9V — 18V
E)Operating current:100mA@12V(Typical)
F)Power consumption:1.2W(Typical)
G)Dimension:121mm*86mm*26mm(LxWxH)
H)Weight:300g

CONTENTS

SUPPORT MULTI-LANGUAGE

Below languages are now available:
• English
• German
• Spanish
• French
• Portuguese
• Russian
• Italian
• Dutch
