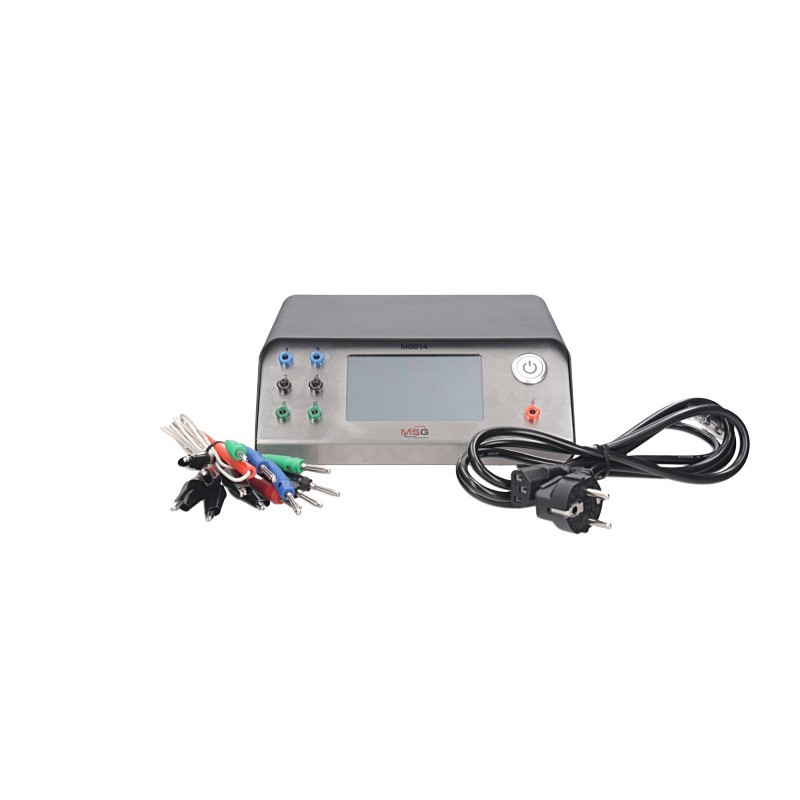

MSG MS014 – TESTER FOR STATOR WINDINGS AND RECTIFIERS

MSG MS014 Tester is an indispensable helper in diagnosing the alternator components: stators and rectifiers. It detects the following faults:

• phase to the magnetic core fault;
• open phase and short circuit of one or several windings;
• stator winding inter-turn fault;
• rectifier breakdown and diode open circuit fault.

Advantages

• possibility to check stator windings connected through “delta” or “star” diagram;
• automatic identification of phase winding connections;
• easy operation of the tester due to the user-friendly interface and touch screen;
• tester small size.

Repairing an alternator, you might as well need Tester MS012 COM to assess the voltage regulator performance.
