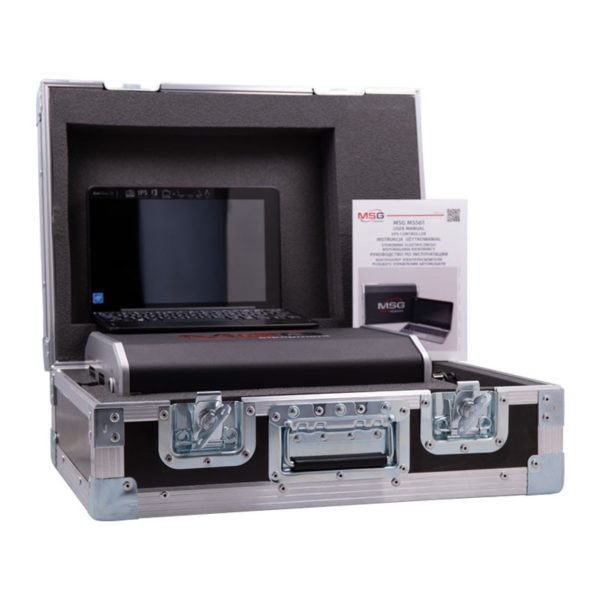

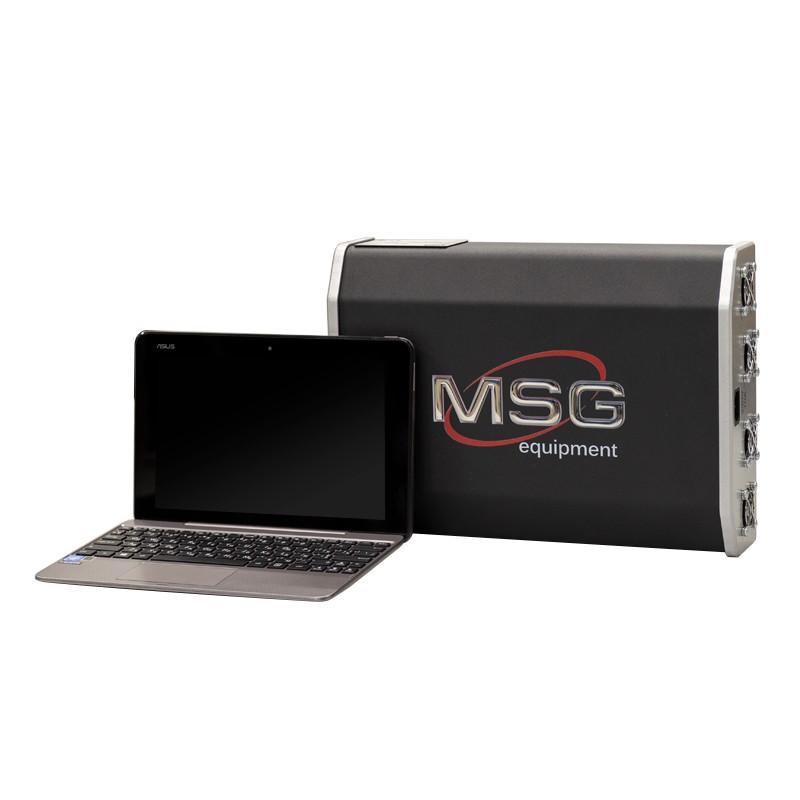

MSG MS561 – CONTROLLER FOR EPS UNITS


MSG MS561 – CONTROLLER FOR EPS UNITS

MSG MS561 – Controller for diagnostics of EPS/EHPS units operating under protocols CAN and FlexRay: steering racks, columns, and pumps. Diagnostics of units disconnected from a vehicle electrical system.

14,800.00 including 23% VAT Rate

Subtotal:

Add-ons total:

Total:

MSG MS561 – CONTROLLER FOR EPS UNITS

MSG MS561 Controller for eps units supplies power to a tested unit and provides special program codes necessary for its launch. Due to this, it is possible to diagnose a unit dismantled from a car. The Controller can diagnose the units disconnected from the vehicle electric system directly in a car. Special diagnostic cables serve for the connection of the unit to the Controller.

MS561 is equipped with the OBD II connector for an external diagnostic device to perform the following:

  • detect and eliminate errors;
  • take readings realtime;
  • receive information stored in the control unit;
  • encode;
  • update software;
  • calibrate sensors;
  • other

Auxiliary equipment to add functionality


  • MS550 – Adapter for diagnostics of steering racks without ECUs.
  • MS-35670 – Universal cable for diagnostics of EPS racks and columns, and EHPS pumps.
  • Cables FlexRay – for diagnostics of EPS units operating under protocol FlexRay.
  • Diagnostic scanners – UCDS, VAS5054, Universal USB programmer.
  • Cables for diagnostics of torque sensors.

Advantages


  • Diagnoses units dismantled from a car.
  • Works with such protocols for data transmission as CAN, FlexRay.
  • Diagnoses torque sensors separately from the vehicle units.
  • Diagnoses vehicle units under load with a maximum absorbed current of 100A.
  • Free online update of the equipment software and units database.
  • Has the OBD II connector for connection of different diagnostic scanners to the Controller (Launch, MaxiSys, VAS5054, Bosch KTS, etc.).
  • Compact size of the device, convenience and ease-of-use.

The manufacturer: MSG Equipment
