TOPDON Phoenix OBD2 Scanner Diagnostic Tools

1,395.00 including 23% VAT Rate


Add-ons total:


TOPDON Phoenix OBD2 Scanner Diagnostic Tools

with 2 years free update

customer support


Enjoy the easy experience in diagnosis, repair and service with this high-spec handheld diagnostic tablet TOPDON Phoenix. Make excellent use of the most recent technological developments and complete with all-round capabilities such as advanced coding & adaptations, bi-directional controls, maintenance service functions, and access to all modules in all available systems with AutoSCAN & AutoVIN (2006+), among others, to speed up your workshop operations, improve accuracy and maximize potential.


  • OE-Level Diagnostics: Online ECU Coding, Active Test, Module Replacement, Modification, Personalization, Access all modules in all available systems, Anti-theft & Key Matching, among many others(varies by vehicle specifics).
  • Online ECU Coding: make software modifications to customize a vehicle in a smarter
  • Active Test: control car functions directly from the tablet to activate or test components on demand, without using the vehicle’s own controls.

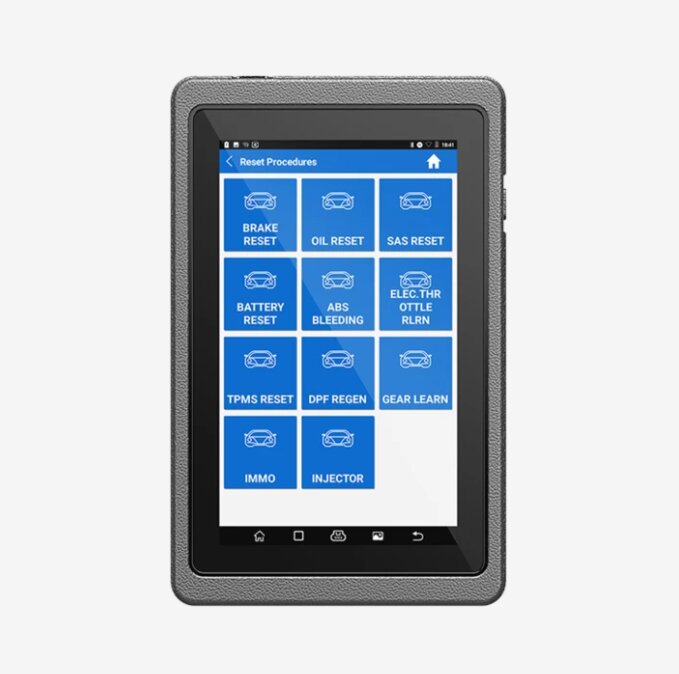

  • Maintenance Service: Oil Reset • EPB Reset • SAS Service ABS Bleeding • TPMS Reset • Gear Learning • IMMO Service • Injector Coding • BMS Reset • DPF Regeneration • Throttle Matching, and still expanding.
  • Camera VINScan: quick recognition of vehicle barcode with rear camera.
  • Smart AutoVIN & AutoScan: save manual selections to identify car make / model / year, and head towards proper diagnostics.
  • User-Oriented Design: Multitasking; VCI Bluetooth wireless diagnosis; One-touch software update via Wi-Fi; Instant remote technical support; Ideal management of workshop operations; Rubberized outer protection; Automatic power-off.
  • Non-16pinKitenable to work on pre-OBDII compliant vehicles.
  • AdvancedHardware: Android 0, 4-core 1.3GHz Processor, 7” Touch Screen (1024*600), 2GB RAM & 32GB On-Board Memory, 5MP Rear Camera, 4680mAh battery, etc.
  • Compatible Protocol: ISO 9142-2 • ISO 14230-2 • ISO 15765-4 • K/L-Line • Flashing Code • SAE-J1850 VPW • SAE-J1850 PWM • CAN ISO 11898 • Highspeed • Middlespeed • Low-speed and Singlewire CAN • GM UART • UART Echo Byte Protocol • Honda Diag-H Protocol • TP 2.0 • TP 1.6 • SAE J1939 • SAE J1708 • Fault-Tolerant CAN, and more.
  • Multilingual Menu: English, French, Spanish, Portuguese, Italian, Russian, Deutsch, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Farsi, Finnish, Hungarian, Swedish, Turkish, Serbian, Chinese Simplified, Chinese Traditional, Japanese, Korea.
  • Operating System: Android 7.0
  • CPU: 1.3GHz Quad-core
  • Display: 7” Touch Screen (1024*600 Resolution)
  • RAM: 2GB
  • ROM: 32GB
  • Connectivity: Wi-Fi (802.11 b/g/n) / Bluetooth 4.0
  • Camera: 5.0MP Rear-Facing Camera with AF
  • Audio Input/Output: Microphone / Speakers
  • Input Voltage: DC 5V/2A
  • Power Consumption: Max. 20W
  • Working Temperature: 0℃~50℃ (32~122℉)
  • Storage Temperature: -20℃~70℃ (-4~158℉)
  • Built-in Battery: 4680mAh
  • Dimension: 205*130*50.8mm (8.07*5.11*2 inches)
  • Weight: 635g (22.39 oz)

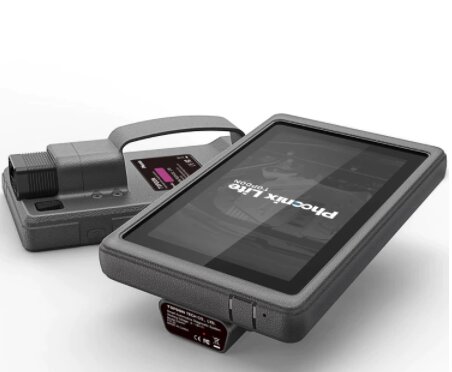

1*Phoenix Tablet
1*VCI Dongle
1*Power Adaptor
1*Charging/Data Cable
1*OBD II Extension Cable
1*Password Envelope
1*OBD I Adaptor
1*Cigarette Lighter Cable
1*Battery Clamps Cable
1*Non-16pin Adaptor Cable Kit:
