AUTEL MaxiBas BT506 Automatic Battery & Electrical System

AUTEL MaxiBas BT506 Automatic Battery & Electrical System

239.00 including 23% VAT Rate


Add-ons total:


AUTEL MaxiBas BT506 Automatic Battery & Electrical System

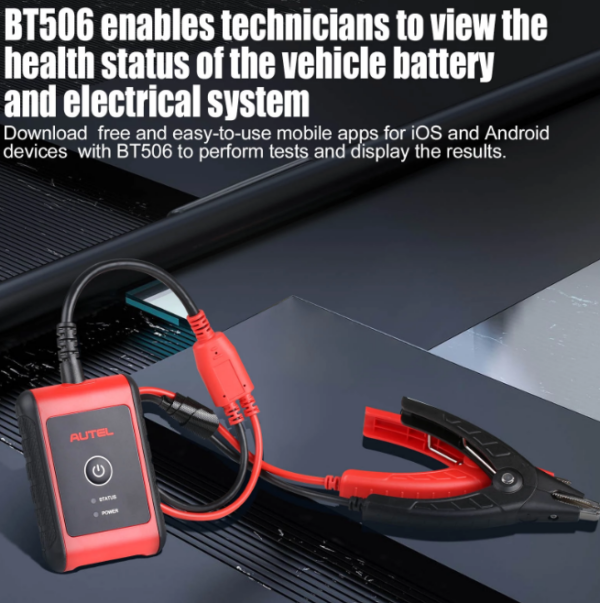

Scan tool Autel MaxiBAS BT506 is a battery and electrical system scan tool that uses Adaptive Conductance, an advanced battery analysis method, to accurately examine the cold-cranking capacity and battery reserve capacity. BT506 allows technicians to view the health status of the vehicle’s battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, with the BT506 to perform tests and view test results.


1. Includes cable connected with clamps
2. Test 6 and 12 Volt Batteries: 100 – 2000 CCA
3. Test 12 and 24 Volt starting/charging systems
4. Download the free app from Google Play and App Store
5. Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
6. Battery Health Report/Temperature Compensation/Cloud Service
7. Battery Ratings: Compatible with CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
8. Support in-vehicle and off-vehicle testing of Passenger Vehicle Batteries
* Off-vehicle battery test
* In-vehicle test of battery, starter, charging system voltage (no amplifiers)


Article Description
Connectivity USB 2.0, Type-C
Bluetooth V3.0 BR/EDR + V4.2 LE Dual-Mode
Input voltage 5V DC
working current <150 mA at 12 Vdc
Internal battery N / A
CCA Range 100 to 2000 A
Voltage range 6 to 36V
Operating temperature -10° to 50°C (14° to 122°F)
Storage temperature -20° to 60°C (-4° to 140°F)

















Package List:

1pc x MaxiBAS BT506
