iCarsoft VAWS V3.0 for Audi/VW/Seat/Skoda


329.00 including 23% VAT Rate

Subtotal:

Add-ons total:

Total:

iCarsoft VAWS V3.0 for Audi/VW/Seat/Skoda

PROFESSIONAL

FAST

SMART

POWERFUL

PRODUCT INTRODUCTION
ICARSOFT VAWS V3.0 IS A PROFESSIONAL AND POWERFUL VEHICLE FAULT DIAGNOSIS TOOL FOR AUDI/VW/SEAT/SKODA DEVELOPED BY ICARSOFT TECHNOLOGY INC. WITH A 4.0″ TFT LCD AND UNIQUE DIAGNOSTIC SOFTWARE, IT FEATURES FULL ECU DIAGNOSIS OF SINGLE VEHICLE BRAND AND TEST MODES MAINLY INCLUDE: CANBUS, ISO9141, KWP2000, AND J1850 ETC. IT ENABLES TECHNICIANS TO ACCURATELY DIAGNOSE COMPLEX PROBLEMS.

TWENTY SUPER ADVANTAGES
·Diagnose Single Brand of most Models (OBDII-16DLC)

·Steering Angle Sensor (SAS) Calibration

·Full System Diagnosis

·Basic Setting supports other specification functions.

·Auto Identify Technology

·lnjector Coding (INJ)(Some vehicles do not enjoy this function)

·Actuation Test / Bi-directory Test

·Read &Clear DTC

·Supports Freeze Frame of Fault Code functions

·Read Live Data

·Support Oil Service Reset

·Supports Battery Test

·Electronic Parking Brake (EPB) system maintenance

·Supports Data Review and Print

·Battery Management System (BMS)(Some vehicles do not enjoy this function)

·Full Speed Upgrade via Computer

·Diesel Particulate Filter (DPF) Regeneration Control System (Some vehicles do not enjoy this function)

·4.0” TFT LCD, 480*320 Pixels

·Supports Multi-Language

·Electronic Throttle Control System (ETC)

READ &CLEAR CODES FOR ALL AVAILABLE SYSTEMS.
DISPLAY LIVE DATA IN TEXT, GRAPH & ANALOG FOR EASY DATA REVIEW.

ACTUATION TEST / BI-DIRECTORY TEST IS USED TO ACCESS VEHICLE-SPECIFIC SUBSYSTEM AND COMPONENT TESTS.
THE VAWS V3.0 CAN RECORD THE VEHICLE TEXTS HISTORY AND IDENTIFY THE VEHICLE INFORMATION AUTOMATICALLY. ALSO KEEP THE LIVE DATA INFORMATION.

PRODUCT FEATURES
PRODUCT FEATURES:
1.  iCarsoft VAWS V3.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission,ABS and airbag etc.
2. Support OBDII/EOBD Ten Modes of Operation.
3. Read Live Data.
4. Full ECU Diagnosis.
5. Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC.
6. Easy To Use With Silicone Keys.
7. Auto VIN technology can automatically identify model and year information in notime.
8. Actuation Test / Bidirectory Test is used to access vehicle-specific subsystem and component tests.
9. Support Freeze Frame of Fault Code functions.
10. Basic Setting,means reset some basic parameter settings for each control module,especially some parts / sensors, etc. Such as Sliding Roof Basic Setting, Activate ESP System/Function Test.
11. Adaption,this function allows you to perform adaptive  learning/reset/calibration and other functions for each control module, and also includes some important moduledata for parameter adjustment.Such as Remote Control Adaptation, Central
12. Locking:Auto-Lock, Central Locking:Audible Locking/Unlocking Confirmation, TPMS ,SRS Airbag Crash Data Reset, etc.
13. Oil Light/Service Reset: Support service lamp reset.
14. Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.
15. Battery Management System (BMS), registers new battery to the BMS while battery replacement.
16. Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
17.  Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replace the throttle valve.
18. Steering Angle Sensor(SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
19. Injector coding, relearn the injector control parameter while the injector renewed or replaced.
20. AFS Head Lamp reset means that the adaptive front lighting system can berotated to either side, pressing the button means they stay pointing straight forward, and don’t turn anymore when turning the steering wheel.
21. Air Suspension, Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
22. The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
23. Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
24. DTC Library to lookup when user is operating this tool.
25. Upgrade Via Computer.
26. Multi-language:English, German, Dutch, Spanish, French and more.
Note!
·Certain functions may be limited from the vehicle manufacturer due to therequirement of a special factory access code.
·This scan tool covers over 20 years of models, so some functions may not beavailable on all years/models.

PRODUCT DETAILS DISPLAY
Dimensions(W*H*D)
206*104.1*32.6 mm (L x W x H)
Display
4.0″ TFT LCD, 480*320 Pixels

OBDII FUNCTION
1. Read Codes
2. Erase Codes
3. I/M Readiness — I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4. DataStream
5. Freeze Frame — When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test — This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitoring — This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test — The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information — The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

PRODUCT SPECIFICATIONS
Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)

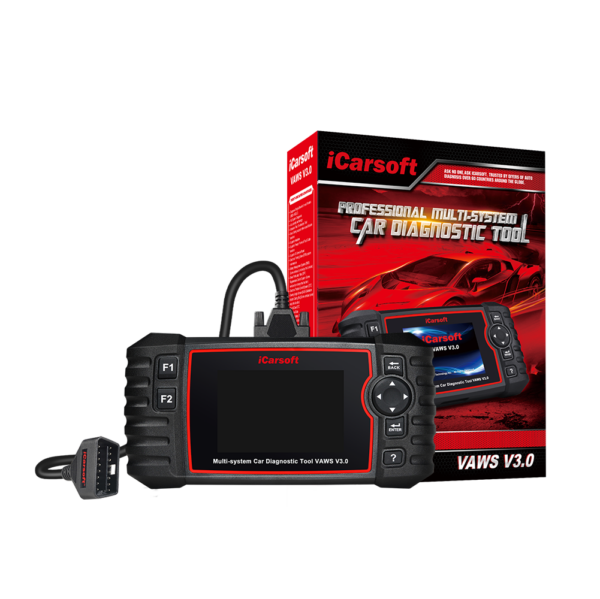

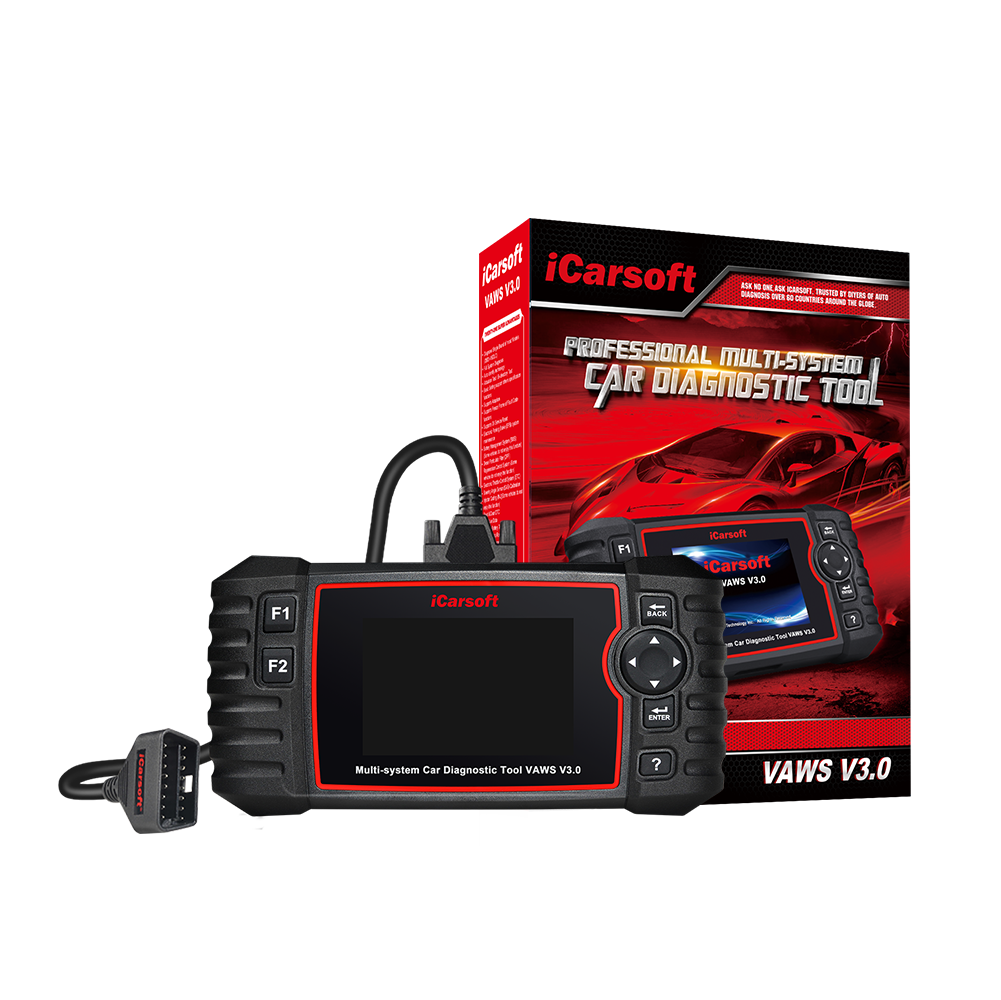

COMMODITY PACKAGING

EFFECT DISPLAY
