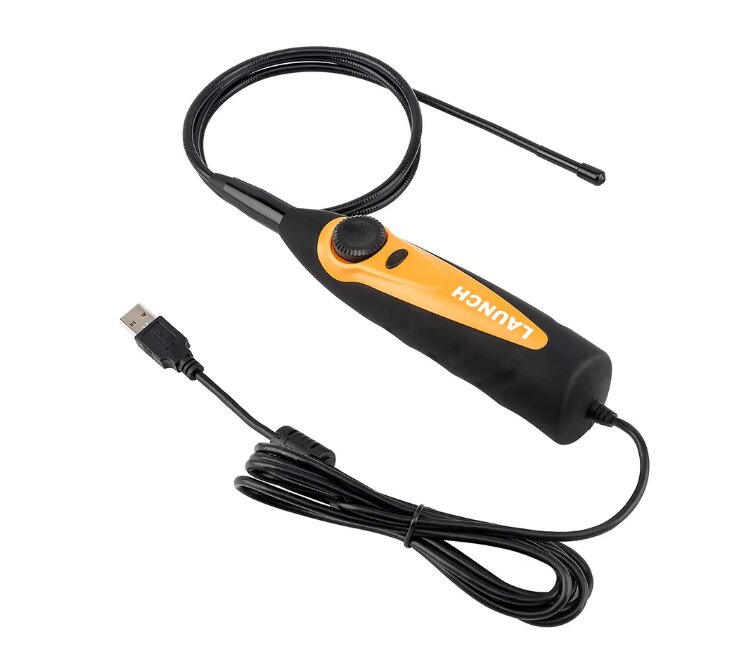

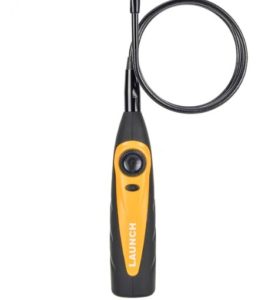

LAUNCH VSP600 Diagnostic Inspection Camera VideoScope Digital HD Endoscope


LAUNCH VSP600 Inspection Camera VideoScope

95.00 including 23% VAT Rate

Subtotal:

Add-ons total:

Total:

LAUNCH VSP600 Diagnostic Inspection Camera VideoScope Digital HD Endoscope

Accessories Car Diagnostic Tool with X431 Series

The VSP600 video scope helps technicians check issues in a vehicle’s unreachable area. With six levels of light strength, technicians can easily adjust the brightness according to the environment. It will work with LAUNCH X-431 scanners or any Android device and stream live video. Technicians can view, record and save images and videos.

Features:

1.Works with LAUNCH X431Serial: Launch X431 Pad , X431 PAD II, X431 PAD V , X431 V , X431 PRO , X431 PRO3S+, X431 V+ , X431 PRO3 , MacTools ETX431 Pad & ETX431 TAB10 & Matco MDMax & MAX 2.0 etc

2. View & record video in full VGA resolution, 30 frames per second
3. Take snapshots and save images right to your Launch scan tool
4. Ultra-small 7 mm camera – IP67 certified for immersion, allows for use in wet, fluid-soaked spaces, easily fits into most spark plug holes for inspection
5. Four adjustable LED lights offer superior brightness, Lightweight, and ergonomic design
6. View, record and save images and videos
7. Take images easily with a one-click snapshot button
8. Easy to adjust the strength of light(6 levels)
9. View & save images/videos on the Launch X-431 scanner
10. Viewable angle: 60℃-65℃
11. Cable length: 2M
12. Now with side view angle mirrors (35/45/60 degrees)
13. 30” flexible articulating probe USB cable allows for easy inspection & access to hard-to-reach areas

14. Lightweight, ergonomic design

LAUNCH VSP600 Diagnostic Inspection Camera VideoScope Digital HD Endoscope seemonez.com
LAUNCH VSP600 Diagnostic Inspection Camera VideoScope Digital HD Endoscope seemonez.com

Technical Parameters:

Resolution: 1280*720
Image Type: Video/Picture
Frame rate: 30 FPS
Sensor size: 2.8mm CMOS
Lens diameter: 5.5mm
Lens focal length: 30-80mm
White Balance: Automatic
Exposure: Automatic
Light source: LED light with adjustable brightness
The operating distance of the product: is 1000mm
USB cable length: 2000mm
Finalize hose length: 800mm
Hose and lens tube length: 830mm
Hose diameter: 4.8mm
Minimum bending radius: 50mm
Perspective: 60 °
Power supply: 5V DC
Operating temperature: 0℃-65℃
Power supply: USB power supply
Image format: JPEG
Video format: AVI
Application software: Endoscopy APP
Supported platforms: Android, Windows
Accessories: Mirror/Magnet/Hook
