LAUNCH X431 PADVII 12V Cars +including 24V Vehicles Heavy Duty Diagnostic Tool OBD2 Scanner Automotive

12V + 24V vehicles including

Please note: Our price includes diagnostic for Cars & Commercial Vehicles

LAUNCH X431 PAD V scan tool can perform bi-directional control on all systems, like ABS, fuel pumps, windows, doors, etc.. It supports 50+ reset services, like key IMMO, abs bleeding, GEARBOX, Oil Reset, Injector coding, Gear Reset, SAS Reset, TPMS Reset, DPF Reset, BMS Reset, ETS Reset, AFS Reset, EGR Adaptation.

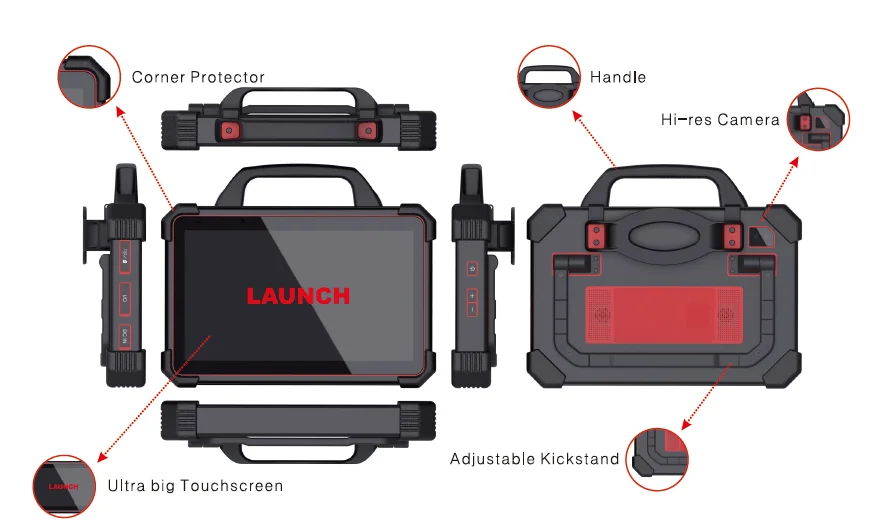

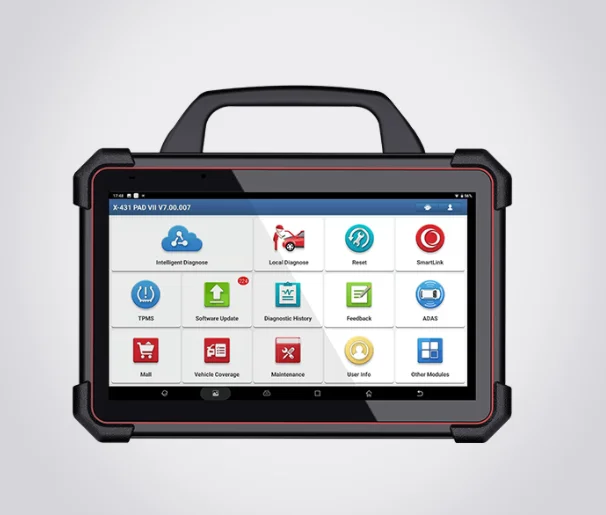

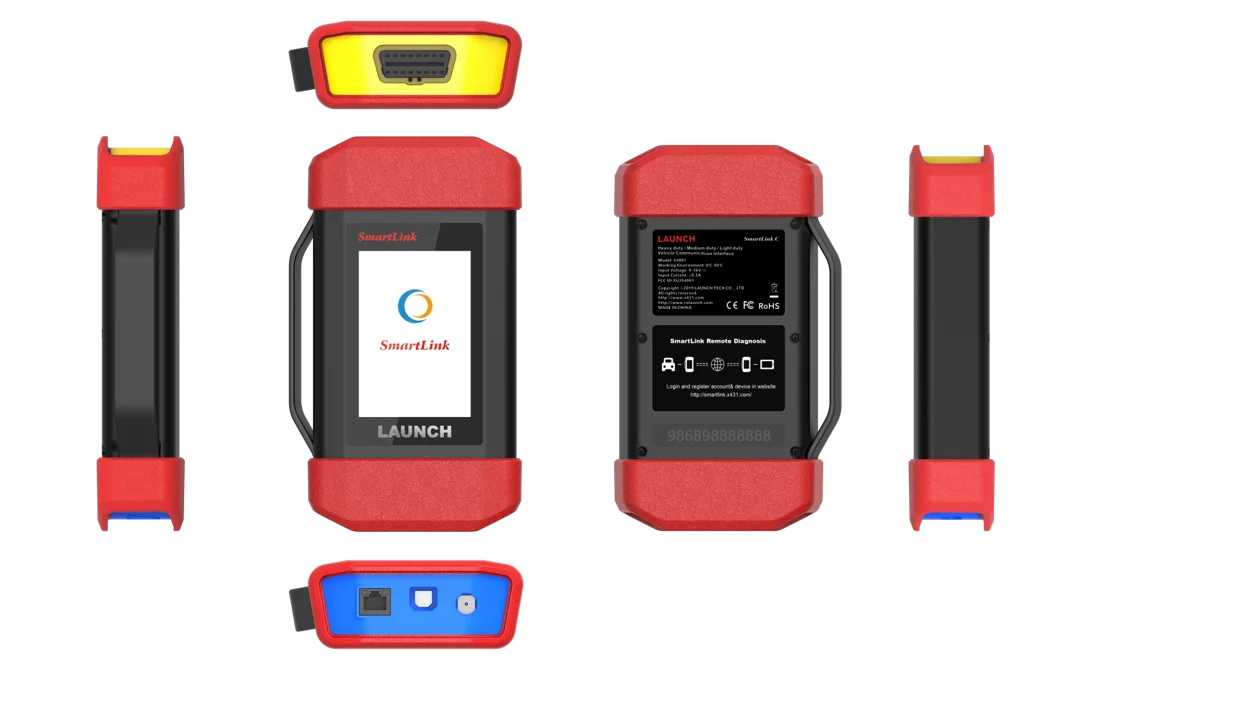

LAUNCH X431 PAD V is equipped with a 10-inch screen,6GB RAM +64GB ROM(UP TO 128GB), an android system tablet, a 15000mAh battery, and 8-core processor, equipped with Docking Station, which can be charged at any time.X431 PAD V features a Smart box, providing faster dual Wi-Fi vehicles and 5G network communications.

Advance OE-level function

√ Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√ Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.

√Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.

√Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Power Balance: Compatible with Chrysler / GM / Ford etc.

√Programmable Module Installation: Compatible with Ford / Mazda etc.

Online Programing of Launch X431 PAD VII

X431 PAD VII supports programming and coding, which is to write the relevant control information of the software into the automotive computer’s programmable EPROM or FLASH by using the electronic communication transmission technology.

X431 PAD VII Support intelligent recognition of programming files, convenient and quick operation. Support for Mercedes-Benz, for Benz New Energy, for BMW, for BMW New Energy, for GM, General New Energy, for Ford, Ford New Energy, for Volkswagen, for Volkswagen New Energy, for Audi, for Audi New Energy, for Land Rover, for Nissan, Skoda, for Seat, for Mazda and other models Programming function.

ECU CODING

ECU Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts. this function works for 98% of car models(including BMW, Volkswagen, Porsche, etc.)

The Bi-Directional Control (Active Test)

enables you to transmit control commands to operate the vehicle systems, without using the vehicle’s controls, to verify system input and output such as:

Turn on the radiator fan / Turn on interior & exterior lights / Turn on the sound horn / Modulate the throttle / Open & close windows / Operate mirrors / Test door lock actuators/ Injector Test; Turn Off ACC Lane Keeping Assist System (LKAS); Turn ON/OFF Front and Rear side ACM Solenoid, turning the fuel pump on and off, cycling the a/c, clutch on and off, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test,DYNAMIC camera aiming,Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests (Vary by car, Hundreds of actuation test functions …

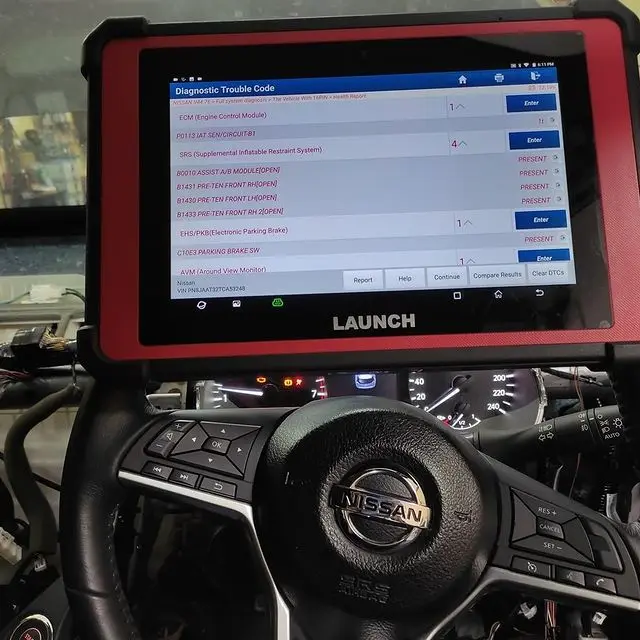

Full Systems Diagnoses In All Vehicle Systems on the ECUs

Engines/ Auto Transmission/ Airbags/ Immobilizer/ Key Coding/ ABS/Cruise Control/ Instruments/ Self Leveling Suspension systems /Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/ 4WD System Stabilizer/Intelligent Parking Assist/ Door Motors/Audio Systems/Air Conditioning/ Anti Theft/ Soft Top/ Headlamp Leveling/Electric Windows/ Plip Programming/ Heated Rear Window/ Xenon Headlights/ Wash Wipe/ Fuel Burning Heater/ Transfer Box/ Seat Memory/ Oil Life Service Reset/ Sliding Doors/ Electronic Throttle / Navigation System/ Rollover Sensor/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Electron…tc /Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/Air Conditioning/ Tiptronic/ Anti Theft/ Soft Top/ Headlamp Leveling/ Central Locking/ Automatic Clutch/ DPF Reset / Electric Windows/ Plip Programming/Seat Memory/ Oil Life Service Reset/ Sliding Doors/ Electronic Throttle / Navigation System/ Rollover Sensor/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Electron..etc

Accurate ADAS Calibration functions

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane-keeping assist, blind-spot elimination, night vision camera and Adaptive lighting. This automotive scanner can read the fault codes on the ADAS system, but if want to do the ADAS calibrate function, you need to buy the ADAS rack extra.

TPMS Diagnostic Function:

LAUNCH X431 PAD V can work with wireless tire pressure diagnostic to achieve the features of TPMS activation, programming and learning. ((NOTE: Need to be purchased separately)) a)Activation: To activate the sensor’s LD, wheel pressure, sensor frequency, tire temperature and battery status. b)Programming: to program sensor data to a blank sensor, replace a sensor in a low battery and does not function properly. There are three sensor programming methods available: automatic, manual, and via activation replication. c) Learning: to write the sensor ID into the vehicle ECU for sensor identification

Key IMMO / Key Fob Programming

Key Fob Programming/IMMO is mainly used to disable the lost vehicle keys and program a new replacement key fob for special vehicles.

Note: the key programming function is NOT universally compatible .please check compatibility with us if necessary. LAUNCH X431 PAD V supports PINCode reading for most cars before 2008; for vehicles after 2008, you need to have Pincode do key programming

√ Add A Key: Add On An Extra Key To The Vehicle
√ Reset Key: Relearn The Key
√ All Keys Lost: Both Key Missing, Create New Key To the Vehicle

SUPPORT EXTENSION MODULES

1. Videoscope (Mainly applied to check unseen parts of the engine, fuel tank, braking system, etc.)

2. TSGUN (activate all sensors, tpms relearn, the program only Launch Sensors)

3. X431 PRO G(IMMO For VAG Group Above 3.5)

4. X431 Heavy Duty Module (diagnose gasoline vehicles & 24V Diesel Trucks)

5. X431 ADAS Moblie/ADAS PRO (calibrate a wide range of camera-based & radar-based driver assistance systems)

6. X431 Printer (Print out diagnostic data/ reports.)

50+ Special functions

1. Oil Reset Service

This function allows you to perform a reset for the engine oil life system, which
calculates an optimal oil life change interval depending on the vehicle driving
conditions and climate.
This function can be performed in the following cases:
1. If the service lamp is on, you must provide service for the car. After service,
you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.
2. After changing engine oil or electric appliances that monitor oil life, you need to reset the service lamp.

2. Electronic Parking Brake Reset

If the brake pad wears the brake pad sense line, the brake pad sense line
sends a signal sense line to the onboard computer to replace the brake pad.
After replacing the brake pad, you must reset the brake pad. Otherwise, the
car alarms.

3. Steering Angle Calibration

To reset the steering angle, first find the relative zero point position for the car to drive in a straight line. Taking this position as a reference, the ECU can calculate the accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing steering mechanical
parts (such as steering gearbox, steering column, end tie rod, steering knuckle),
performing four-wheel alignment or recovering car body, you must reset the
steering angle.

4. ABS Bleeding

This function allows you to perform various bi-directional tests to check the
operating conditions of the Anti-lock Braking System (ABS).

5. Tire Pressure Monitor System Reset

This function allows you to quickly lookup the tire sensor IDs from the vehicle’s
ECU, as well as to perform TPMS replacement and sensor test.

6. Gear Learning

The crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the computer to more accurately diagnose engine misfires. If tooth learning is not performed for a car equipped with a Delphi engine, the MIL turns on after starting the engine. The diagnostic device detects the DTC P1336 ‘tooth not learned’. In this case, you must use the diagnostic device to perform tooth learning for the car. After tooth learning is successful, the MIL turns off.

7. IMMO Service

8. Injector Coding

9. Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoring unit
of vehicle battery, in which the original low battery fault information will be
cleared, and battery matching will be done.

10. DPF Regeneration

PDF regeneration is used to clear PM (Particulate Matter) from the DPF filter
through continuous combustion oxidation mode (such as high temperature
heating combustion, fuel additive or catalyst reduce PM ignition combustion) to
stabilize the filter performance.

11. Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators and returns
the “learned” values stored on ECU to the default state. Doing so can accurately
control the actions of regulating throttle (or idle engine) to adjust the amount of
air intake.

12. Gearbox Matching

if the vehicle won’t start or the “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions.

13. AFS Reset

14. Sunroof Initialization

15 Suspension Calibration

16. EGR Adaption

17. Seats Calibration

18. Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.

19. Coolant Bleed

Use this function to activate the electronic water pump before venting the cooling
system.

20.AdBlue Reset

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea
reset operation is required.

21.NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in
engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter
is replaced, it is necessary to reset the catalytic converter learned value stored
in the engine ECU.

Provides Module Network Structure Topology, Better to let you know the car clearly and simple!

Colour-coded topology displays all system status on one page!!! View structure of communication between modules
The topological diagram Function can display the entire system through the Topology Map to glance at all the modules with faults, which is easy to locate faults and causes.

Up to 5 ways of DTC display: Topology, list, separately click into the control unit, Intelligent Diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.

Display the entire system through the Topology Map to glance at all the modules with faults, which is easy to locate faults and causes. Colour-coded topology displays all system status on one page and the structure of communication between modules. Communication between modules and status can be spotted in a glance, and you can locate faults more intuitively to solve problems quickly!

NOTE: Topology is not universal to all vehicles. Please check VIN for compatibility before you place an order!

PIN Detection Function

Pin detection can be used to detect the voltage of the vehicle OBD-II diagnostic socket pins and the supported protocol types to help technicians judge the OBD-II diagnostic interface. If the detection result doesn’t match the actual vehicle configuration, the corresponding pin may be faulty.

Remote Diagnose

help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.  Could access remotely and quickly via mobile phone, tablet and computer, with low bandwidth and system resource occupancy.

It also can “Add friend “, can add the one who also uses launch product, then you can communicate with them in X431 Pro3s, if you have a problem to car repair, you can talk with them online, they can help you !!!

Online Database

is filled with abundant repair cases and automotive technology handbook for your easier retrieval and reference.
