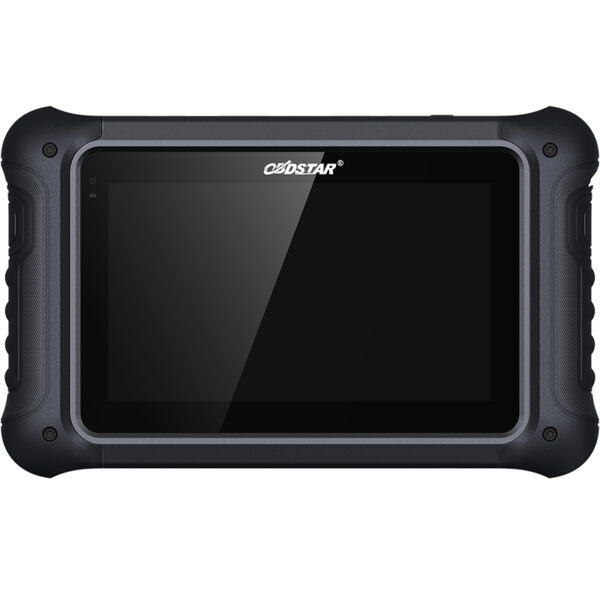

OBDSTAR MS70 STD Motorcycle Diagnostic Tool Scanner


OBDSTAR MS70 STD Motorcycle Diagnostic Tool Scanner

Please note: All orders are shipped from IRELAND with a 1-year warranty & Tax included. Delivery time for the OBDSTAR tool is 4-10 working days.

1,539.00 including 23% VAT Rate

Subtotal:

Add-ons total:

Total:

OBDSTAR MS70 STD Motorcycle Diagnostic Tool Scanner

Please note: All orders are shipped from IRELAND with a 1-year warranty & Tax included. Delivery time for the OBDSTAR tool is 4-10 working days.

Supports Moto Diag

The Moto special kit supports Moto IMMO, Odo recalibration, ECU programming(ECU tuning & remap will come soon!).

Functions

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quick;

5. Record and playback real-time data streams, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance;

8. Support the fault diagnosis of most of the world’s luxury locomotives and tens of thousands of models.

Advanced function

1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV diagnostic function support series

ASIA:

AEON, BAJAJ, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

EUROPE:

APRILIA, BENELLI, BMW, DERBI, DUCATI, GILERA, HM, HUSQVARNA, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, RBS, ROYAL ALLOY, TRIUMPH, VESPA

AMERICAS:

ACELLERA, BRP, HARLEY-DAVIDSON, INDIAN

CHINA:

CFMOTO, CHINA ABS, CHINA ENGINE, HAOJUE, QJBENELLI, SHINERAY, ZONTES

More functions under developing…



Function Display

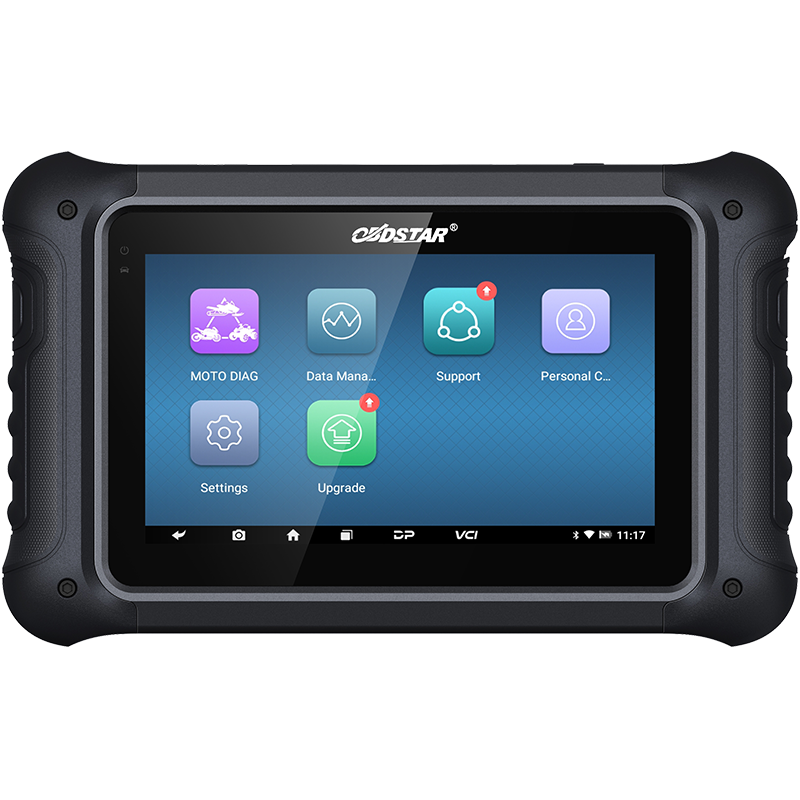

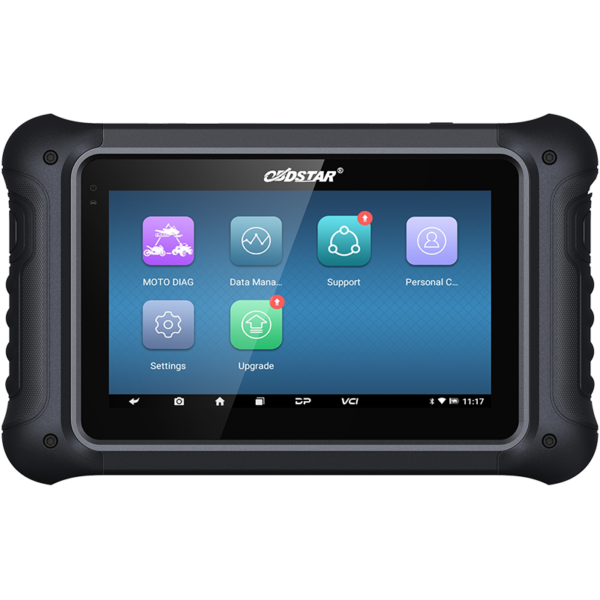

1) Main Page/Brand Supported


MS70



2) Help Data/Technical Bulletin/Fault Guidance


MS50 STD

MS50 STD

MS50 STD

MS50 STD



3)Supported Systems List/Manual Service Function




MS50 STD

MS50 STD

MS50 STD

MS50 STD



4) Manual Maintenance Reset


MS50 STD

5) Diag Socket/Diag Connector Location


MS50 STD

MS50 STD

6) Data Flow Text/Waveform Diagram/Instrument Diagram


MS50 STD

MS50 STD

MS50 STD



7) Special Function/Special Adjustments-HARLEY-DAVIDSON




MS80 STD

MS80 STD





8) Special Function-TRIUMPH




MS80 STD



9) Special Function/Advanced Function-KTM






MS80 STD

MS80 STD

MS80 STD





10) Special Function-BMW




MS80 STD

MS80 STD

MS80 STD





11) Special Function-APRILIA




MS80 STD



12) Special Function/Systems List-PIAGGIO




MS80 STD



MS80 STD

MS80 STD



MS80 STD

MS80 STD

MS80 STD





13) Special Function-SYM




MS80 STD





14) Special Function-KYMCO




MS80 STD





15) Special Function-BENELLI




MS80 STD





16) Special Function-VESPA




MS80 STD

17) Active Test-SUZUKI




MS80 STD



18) Special Function/Advanced Function/Active Test-KAWASAKI




MS80 STD

MS80 STD

MS80 STD

MS80 STD

MS80 STD

MS80 STD

MS80 STD

19) Special Function-HONDA




MS80 STD



MS80 STD

MS80 STD

MS80 STD

20) Special Function/Auto Scan-YAMAHA




MS80 STD

MS80 STD



21) Advanced Function-DUCATI






MS80 STD



22) Special Function/Vehicles List-INDIAN




MS80 STDMS80 STD



MS80 STD



Operation system Android 5.1.1
CPU RK3128 quad-core ARM cortex A7
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 16GB
LCD 7.0 inch
LCD resolution 1024*600
Touch screen Capacitive touch screen
Wifi Supported
Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature -20℃~70℃ (-4℉~158℉)
Weight About 1.3kg
Dimension 243mm*148*mm*36mm

MS70
