AUTEL MK808S-TS Diagnostic Tool ODB2 Scanner Automotive Code Reader TPMS programmer

Automotive Diagnostic Equipment

919.00 including 23% VAT Rate


Add-ons total:


AUTEL MK808S-TS Diagnostic Tool ODB2 Scanner Automotive Code Reader TPMS programmer

MK808S-TS it’s a New 2023 model

New Functions Releases

1. Active test

You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.

2. Support MV105 Inspection Camera

Autel 105 MaxiVideo Inspection Video Scope is compatible with MK808TS, maximizing the potential of MK808TS to examine and clean difficult-to-reach car areas, such as spark plug holes, engine cylinders, and other small parts, quickly and safely.

Note: MV105 need to be bought separately.

3. More Language optional

4. Support BT506 Battery Test (need to buy separately)

Autel MaxiCOM MK808S-TS Automotive OBD2 Diagnostic Tool Car Scanner TPMS Service Programming Sensor and Bluetooth

Autel scanner MK808S-TS is a tablet capable of performing a variety of advanced services functions such as complete TPMS functions, TPMS retrofitting, 28+ reset services, and whole-system diagnostics, etc. It perfectly combines the functions of comprehensive scanners (MK808) and professional TPMS tool (TS601) into one but costs far less than purchasing two devices separately. It’s ideal for mechanics and DIYers to use in their garages and workshops.


Autel MK808S-TS Diagnostic Scanner Android-Based with Oil Reset/EPB/BMS/SAS/DPF/IMMO plus the Complete TPMS Service + 1-year free update + 1-year warranty

Autel MK808S-TS, as an advanced Android-based tablet diagnostic tool featuring all-around fixes of Oil Reset/EPB/BMS/SAS/DPF/IMMO and the comprehensive TPMS service, is the ideal combination of MK808 and TS601 for DIY enthusiasts and auto repair stores to get faster and more accurate diagnosis.



Autel MK808s-TS is specially designed to provide the complete TPMS service as MaxiTPMS TS608 including TPMS health check, programming and relearn etc., for helping technicians to quickly find out the faulty sensor and turn off the MILs related.

1. Activate all known TPMS sensors and read sensor status;

2. Diagnose ECU for complete TPMS health check with DTC description;

3. Read DTCs from ECU and erase DTCs;

4. Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;

5. On-tool relearn procedure and wide OBD relearn coverage;

6. Toolkit, special TPMS functions;

【Complete TPMS Functions for Boost in TPMS Work】

MK808TS, being available to activate 98% of all known TPMS sensors, provides the most advanced TPMS diagnosis and the most comprehensive OBD relearn coverage for a complete TPMS health check, allowing technicians to solve TPMS-related problems with a series of quick and effective operations:

1. TPMS Check: The Check function allows users to activate TPMS sensors to view sensor data – sensor ID, tire pressure, tire temperature, battery condition and sensor location.

2. TPMS Diagnosis: The Diagnosis function is used to check the status of the TPMS system. This function requires a connection with the test vehicle.

3. Sensor Programming: The Programming function allows users to program the sensor data to the MX-Sensor and replace the faulty sensor with a low battery life or the one that is not functioning. There are four options available when programming MX-Sensor:

1). Copy by Activation – Once the sensors mounted on the vehicle have been triggered and the sensor information displayed on the tool, the Copy by Activation can be used to program a new MX-Sensor.

2). Copy by OBD – By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX sensors.

3). Copy by Input – The Copy by Input allows users to program a new MX sensor with the ID of an original TPMS sensor. 4. Auto Create – The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor.

4. TPMS Relearn: This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are three ways to Relearn: Stationary Relearn; Active Relearn; and OBD Relearn.

5. TPMS by OEM Part No.: If the sensor’s OEM part number is known, this function is an efficient method to activate and program MX-Sensors.

【All Systems Diagnoses for Deep Inspection in Vehicles】

MK808S-TS is a full system diagnostic scanner that can quickly test every system module’s status and make faster diagnosis & maintenance via reading/clearing codes as well as viewing live data etc., but only costs you a few minutes to finish full scanning. You can learn to perform complex diagnostic functions that will give you a lot more power over the ins and outs of your car to figure out what is going on with your modern computerized vehicle so that you can get it fixed and get back on the road in due time. A brief introduction of its capabilities in full systems diagnoses is as follows:

1. For Engine System: Diagnostic tool MK808TS can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in the Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. For Transmission: It makes great sense in safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. For SRS System: SRS, a safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status. 5. And much more

【Fully-Equipped Popular Functions Like a Repair Garage】

As an advanced diagnostic tool, MK808TS has all kinds of services accessible for complete diagnoses and maintenance. You can quickly access the vehicle systems within this function.

1. Oil reset service allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.

2. EPB service plays an important role in the maintenance of the electronic braking system’s safety and efficiency.

3. BMS service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF service specially works for Diesel Particulate Filter systems with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS service helps clear the faulty steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. IMMO is mainly used to disable the lost vehicle keys and program a new replacement key fob.

【Widespread Coverage for Multiple Vehicle Models】

The best part about the MK808TS is its wide vehicle coverage. It is compatible with most 1996 US-based vehicles or newer, and 2000 EU-based vehicles or newer. In other words, it supports a wide range of modules that can be scanned for codes as well as the ability to display values and sensor data for the specific module scanned. The supported brands include:

Asia: For Acura, For Daewoo, For Holden, For Honda, For Hyundai, For Infiniti, For Isuzu, For Kia, For Lexus, For Mazda, For Mitsubishi, For Nissan, For Scion, For SsangYong, For Subaru, For Suzuki, For Toyota, For BYD, For ChangAn, For Chery, For DFM, For FAW, For Foton, For Geely, For GreatWall, For Haval, For JAC, For Lifan, For Luxgen, For MG, For Zotye

Europe: For Abarth, For Alfa-Romeo, For Alpina, For AstonMartin, For Audi, For Bentley, For Benz, For BMW, For Citroen, For Dacia, For Ferrari, For Fiat, For Jaguar, For Lamborghini, For Lancia, For LandRover, For Lotus, For Maserati, For Maybach, For Mini, For Opel, For Peugeot, For Porsche, For Renault, For Rolls-Royce, For SAAB, For Skoda, For Smart, For Volvo, For Volkswagen

USA: For Buick, For Cadillac, For Chevrolet, For Chrysler, For Dodge, For Ford, For GMC, For Hummer, For Jeep, For Lincoln, For Mercury, For Oldsmobile, For Pontiac, For Saturn, For Tesla

Australia: For HSV


The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.

Advanced Hardware

MK808S-TS is an Upgraded Version of MK808TS

MK808S-TS have more advanced hardware. You can check the following differences.

MK808S-TS Hardware
CPU: Rockchip RK3566
Battery Capacity:5000mAh
Android Version: Android 11
Screen Size:7inch
Wifi:2.4 & 5 GHz
VCI: main cableMK808S-TS has more advanced hardware.

MaxiVCI Mini is equipped for connecting between the diagnostic tablet and DLC for wirelessly vehicle data transmission via the fast and reliable Bluetooth 2.1 EDR, allowing technicians to have complete freedom to move anywhere in the repair shop when the VCI is connected to the car.

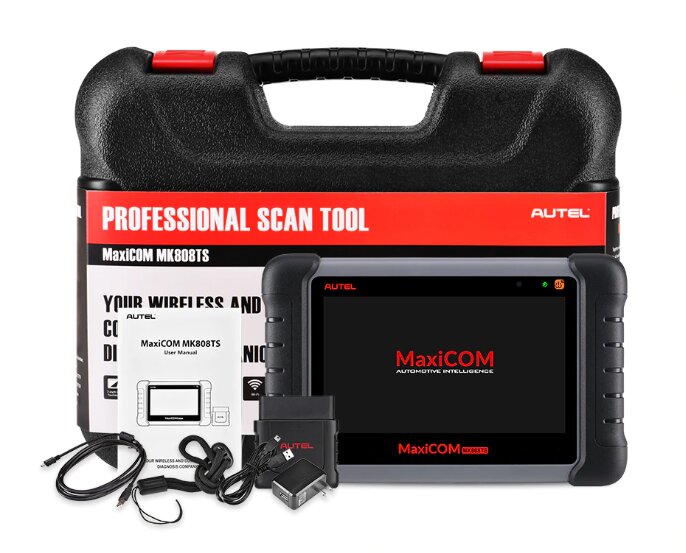

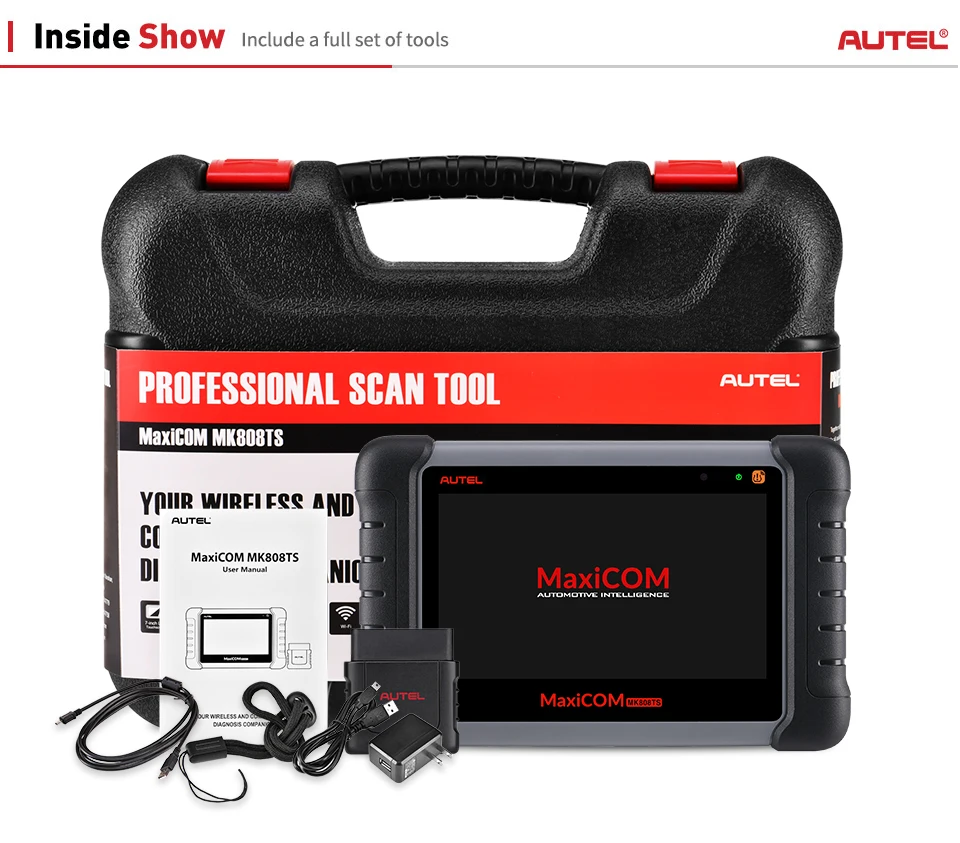

1*MaxiCOM MK808TS

1*MaxiVCI Mini

1*Power Adapter


1*Mini USB Cable

1*Quick Reference Guide

1*Strap Quick Guide 1*User Manual
